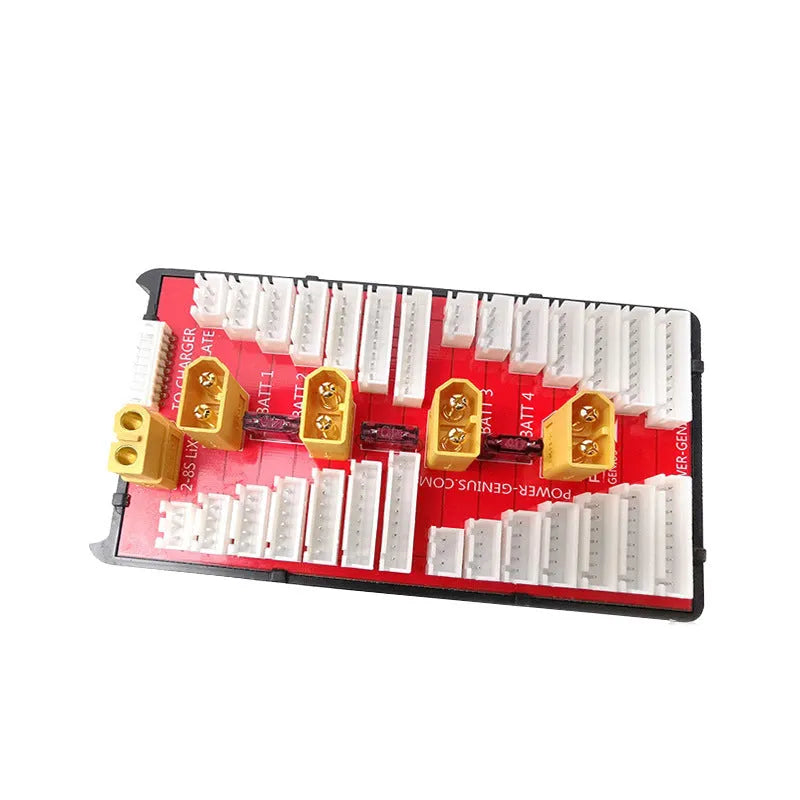

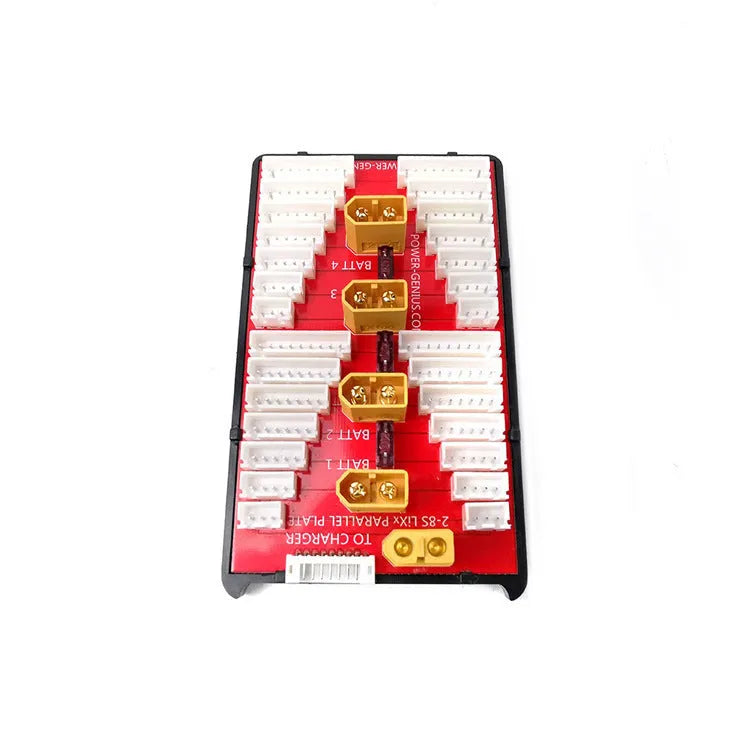

V2 Parallel Charge Board: Charge Up To 4 LiPo Battery Packs Simultaneously

Managing multiple LiPo batteries for RC hobbies can be a time-consuming process of sequential charging. This V2 Parallel Charge Board is designed as a practical solution, functioning as an expansion adapter for your balance charger. It allows you to connect and charge up to four battery packs at the same time, provided they share the same cell count (from 2S to 8S). By enabling parallel charging, it consolidates the balance charging process, potentially shortening the overall time spent compared to charging each pack individually. The board integrates safety features like dedicated fuses and is built with components such as thicker PCB copper and silicone wiring to support the demands of this setup.

Features and Construction

The V2 board’s design prioritises both functionality and safety for handling multiple LiPo batteries in parallel. Its core capability is to combine the capacity of identical battery packs, allowing a single balance charge cycle to service all connected units.

Material and Build

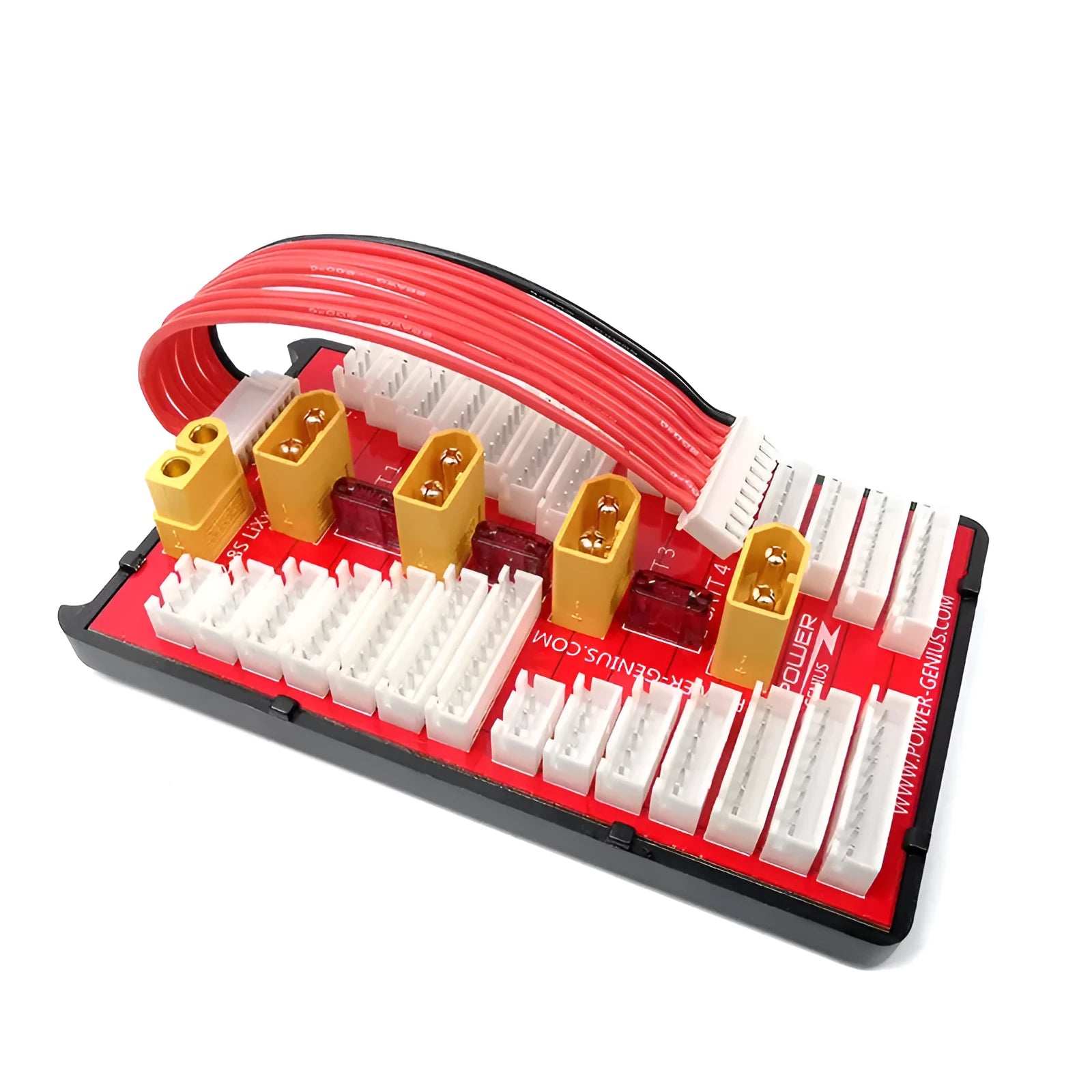

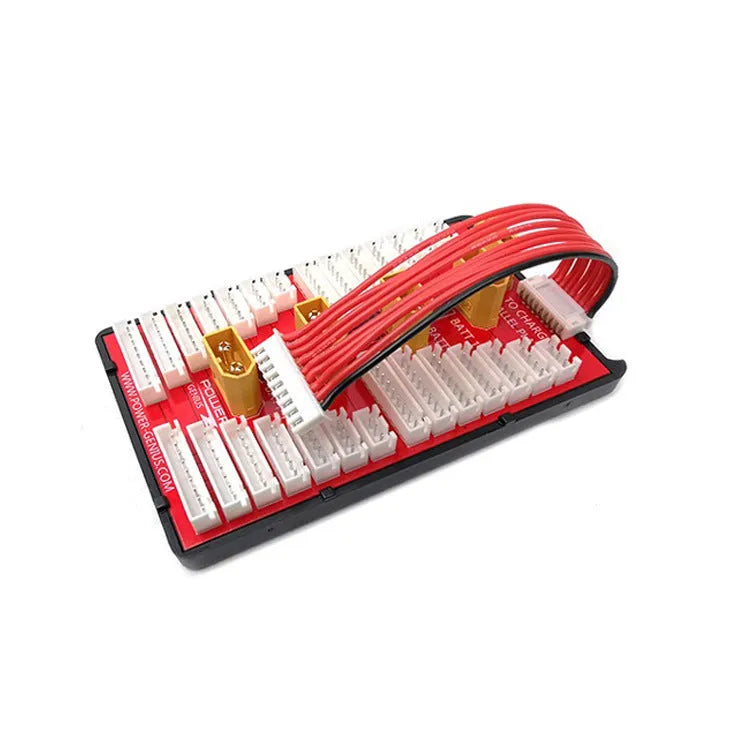

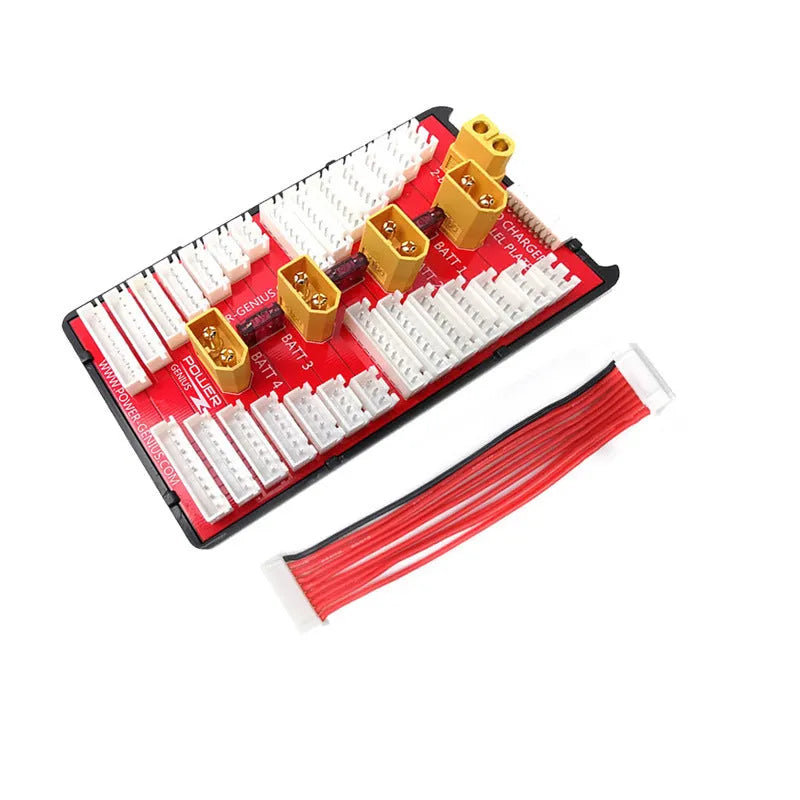

The board’s construction utilises a Printed Circuit Board (PCB) with thicker copper foil, which is specified to support a charging current of up to 35 amps. Electrical connections are made with high-quality gold-plated connectors, which are known for reliable conductivity. The output lines for the balance ports are made from 18AWG multi-strand silicone wire, a flexible and durable cable choice suitable for workshop use. The package includes silicone caps designed to fit over the T plug connectors when not in use, helping to prevent accidental short circuits.

Size and Practical Fit

While specific physical dimensions are not provided, the product is described as a board, indicating a flat, plate-like form factor designed to sit on a workbench or charging station. Its primary ‘fit’ is electrical compatibility: it works with any balance charger and is designed to interface with LiPo battery packs featuring standard T plug connectors. The key practical requirement is that all batteries connected to it must be of the same type and have an identical number of cells (e.g., all 4S 5000mAh packs).

Uses and Placement

This adapter board serves a specific niche within the RC hobbyist and possibly professional drone operator’s toolkit. Its value is realised in scenarios where multiple battery packs need to be cycled efficiently.

Event or Professional Use

During RC racing events, drone filming sessions, or any scenario involving frequent battery swaps, time between runs is critical. This board allows an operator to connect all depleted packs (of the same specification) to a single, powerful charger. This setup means that during a break, all batteries can be replenished simultaneously rather than queuing them one after another, maximising uptime. The integrated 40A fuses provide a layer of protection when connecting packs that may have slight voltage variances from the day’s use.

Everyday Home Use

For the enthusiast at home, it simplifies the post-flying or post-driving routine. Instead of manually charging each of four or more packs sequentially—a process that could take many hours—they can all be charged in one extended session. The board effectively creates a single, larger-capacity battery from multiple smaller ones for the charger, which can shorten the overall balance time as the charger manages one combined pack instead of performing multiple individual balance cycles.

Benefits and Buying Value

The value of this parallel charge board lies in its ability to improve workflow efficiency and incorporate specific safety measures for its intended task.

Reuse and Low Maintenance

The board itself is a durable tool with no consumable parts other than the user-replaceable 40A fuses, which are a safety feature. Its robust construction with thick PCB copper and quality connectors suggests it is built for repeated use in a workshop environment. Maintenance is minimal, primarily involving keeping the connectors clean and ensuring the silicone protective caps are used to prevent debris ingress.

Why Choose This Product

This V2 board is a suitable choice for anyone regularly charging multiple identical LiPo batteries who wants to reduce hands-on charger management time. Its key differentiators are the stated support for up to four packs, the 35A current capability, and the inclusion of protective fuses and connector caps. It provides a focused, practical solution for a specific task without unnecessary complexity, making battery management more efficient for serious hobbyists.
