Super IR Cam Mini Microscope Thermal Imaging System with 48,640 Measurement Points

This Super IR Cam mini microscope thermal imaging system provides a specialised tool for electronics technicians, maintenance professionals, and evaluators requiring precise thermal analysis. With 48,640 effective temperature measuring points across a 256 x 190 grid, it delivers detailed thermal mapping for applications ranging from PCBA quick diagnosis to electricity leakage detection. The system operates within a -20°C to 120°C temperature measurement range and features a compact design measuring 191 x 171.5 x 38 mm. Its Type-C interface with 5V input voltage ensures straightforward connectivity, while the included separate expansion bracket extends compatibility with various microscope models and thermal imaging setups.

Features and Construction

This thermal imaging system combines precise measurement capabilities with practical mounting solutions for professional and technical environments. The unit is designed specifically for integration with microscopes, providing synchronised visible light and thermal imaging for intuitive defect location.

Material and Build

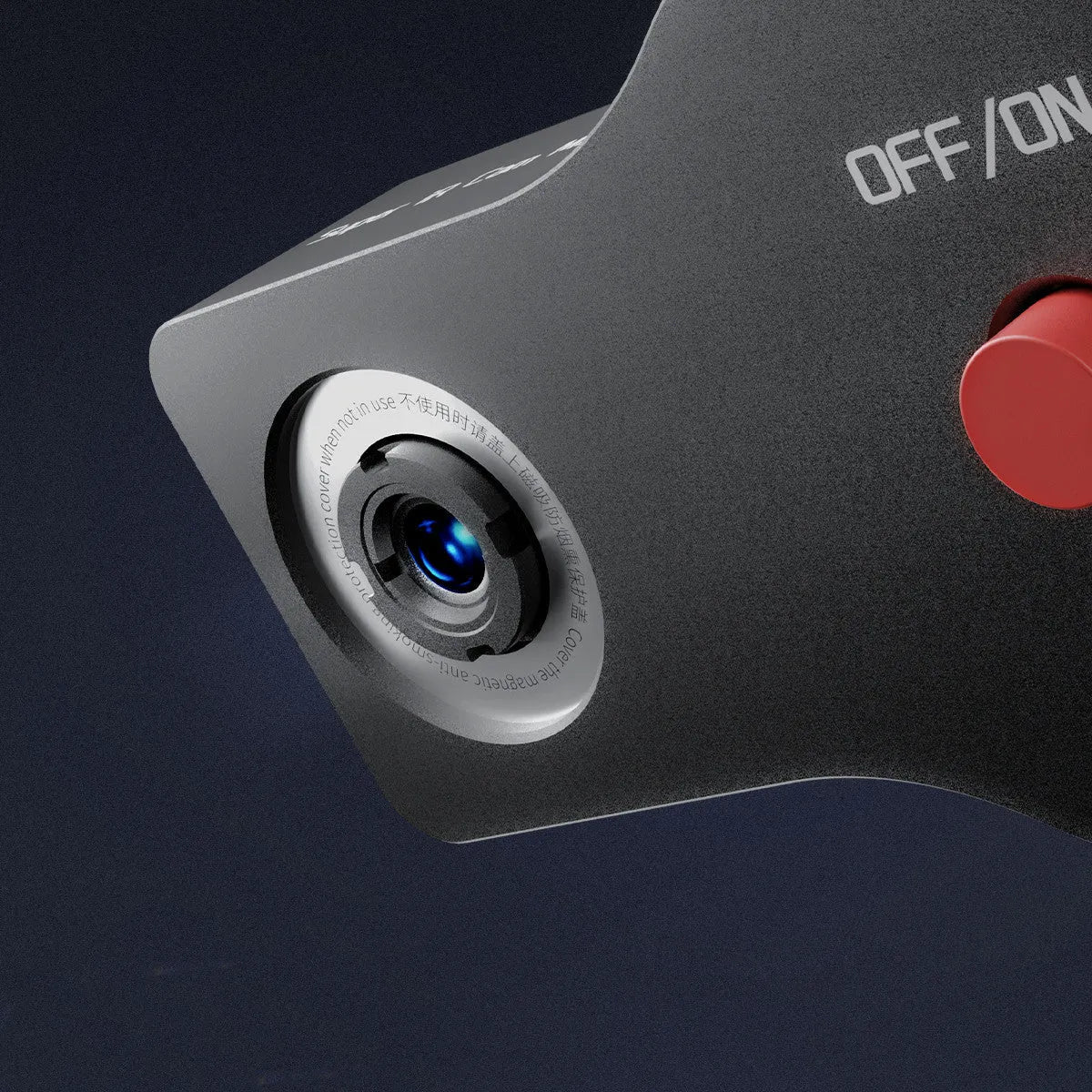

The core component is an infrared heat sensor protected by a cover that can be blocked when not in use. This sensor captures temperature data across 48,640 individual points, creating a comprehensive thermal map for analysis. The construction includes a rotating adjustment mechanism that enables flexible positioning to accommodate different microscope heights and viewing angles, ensuring images remain synchronised between visual and thermal modes. The system's 5V power requirement via Type-C interface provides efficient operation with standard power sources.

Size and Practical Fit

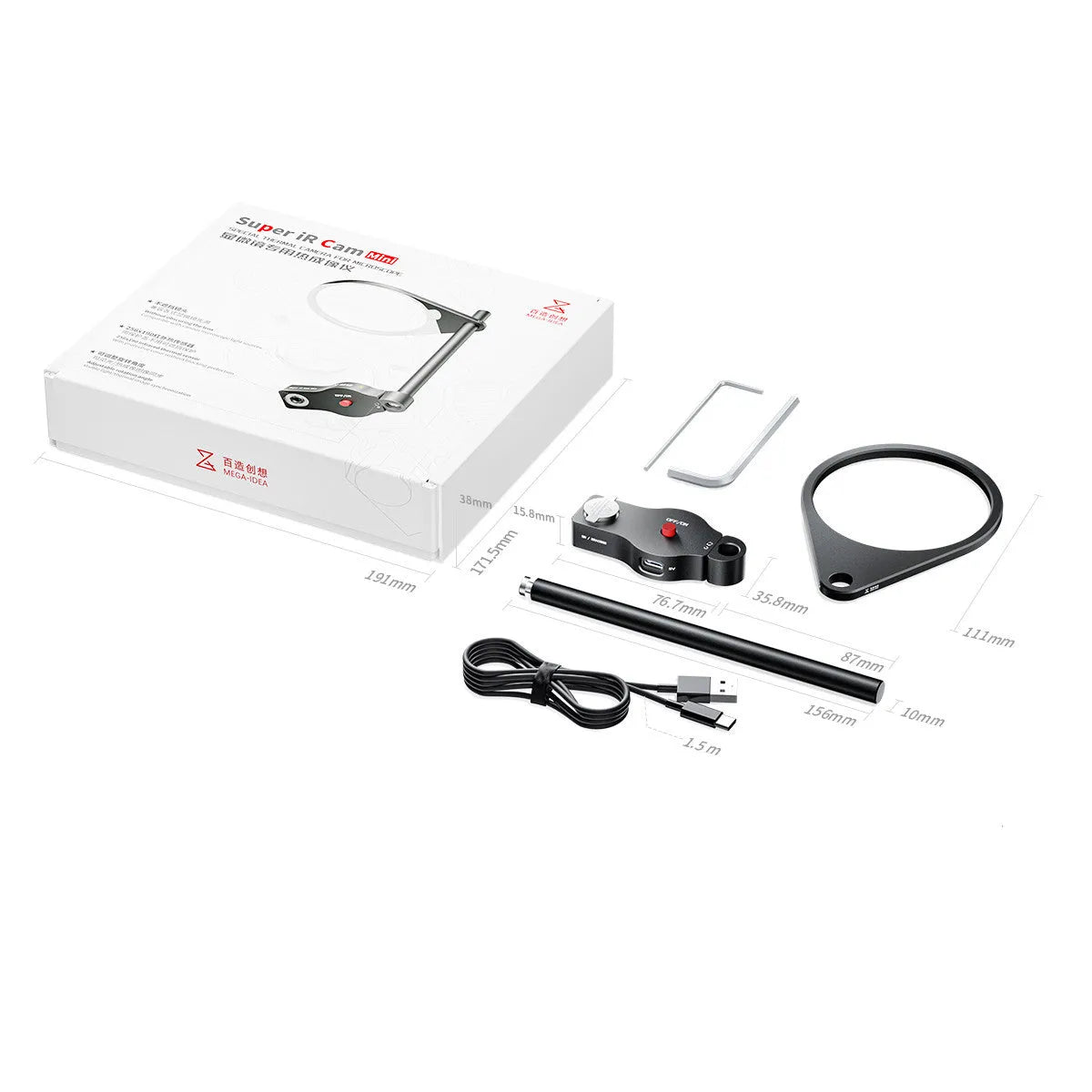

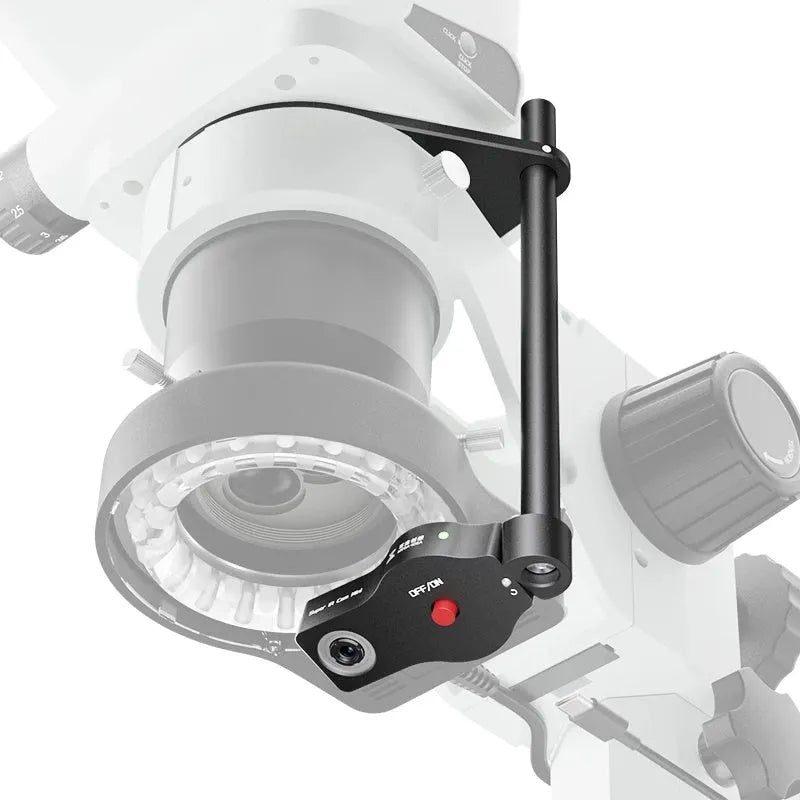

The main unit measures 191 mm in width, 171.5 mm in depth, and 38 mm in height, making it compact enough for various workspace configurations. The included vertical fixing rod and microscope extension support allow for secure mounting in different orientations. This flexibility is enhanced by the separate expansion bracket, which extends compatibility to more microscope models beyond the standard configuration. The rotating mechanism provides adjustable viewing angles, enabling technicians to position the unit optimally for different inspection tasks.

Uses and Placement

This thermal imaging system serves multiple applications in technical and evaluation environments where temperature analysis is critical. Its primary function is to identify thermal anomalies that indicate potential faults or defects in electronic components and assemblies.

Event or Professional Use

For professional technicians conducting PCBA quick diagnosis, the system offers electricity quick check functionality to rapidly locate abnormal temperatures according to real-time readings. By adjusting the temperature range, technicians can troubleshoot defects in detail, finding fault locations more quickly and accurately. The ability to display both visible light and thermal imaging images in the same position makes detection more intuitive, particularly when working with complex circuit boards or integrated systems where precise fault location is essential.

Everyday Home Use

While primarily designed for professional applications, the system's intuitive operation makes it suitable for advanced hobbyists, electronics enthusiasts, and educational users requiring thermal analysis capabilities. The 3D effect mode, which better displays heat distribution patterns, assists evaluators in visualising thermal gradients across components. This functionality supports learning and demonstration purposes in educational settings, maker spaces, or for individuals maintaining sophisticated home electronics systems where thermal management is a concern.

Benefits and Buying Value

This thermal imaging system delivers practical advantages through its measurement precision, compatibility features, and operational flexibility. The combination of high-resolution thermal mapping with adaptable mounting options creates a versatile inspection tool.

Reuse and Low Maintenance

The system's design emphasises reuse across different applications and setups. The separate expansion bracket extends compatibility with various thermal imaging models, allowing modification for different configurations. The rotating adjustment mechanism accommodates different microscope heights, ensuring the unit can be adapted to changing workspace requirements. With no specialised consumables required and straightforward 5V power via Type-C, ongoing operation maintains low overheads beyond initial setup.

Why Choose This Product

This thermal imaging system offers specific advantages for users requiring detailed temperature analysis in microscopy applications. The 48,640 effective temperature measuring points provide significantly more data than basic thermal cameras, enabling precise identification of thermal anomalies. The -20°C to 120°C measurement range covers most electronics operating temperatures, while the synchronised visible light and thermal imaging display allows intuitive correlation between physical components and their thermal signatures. The included mounting hardware and expansion options make it adaptable to various existing microscope setups without requiring complete system replacement.
