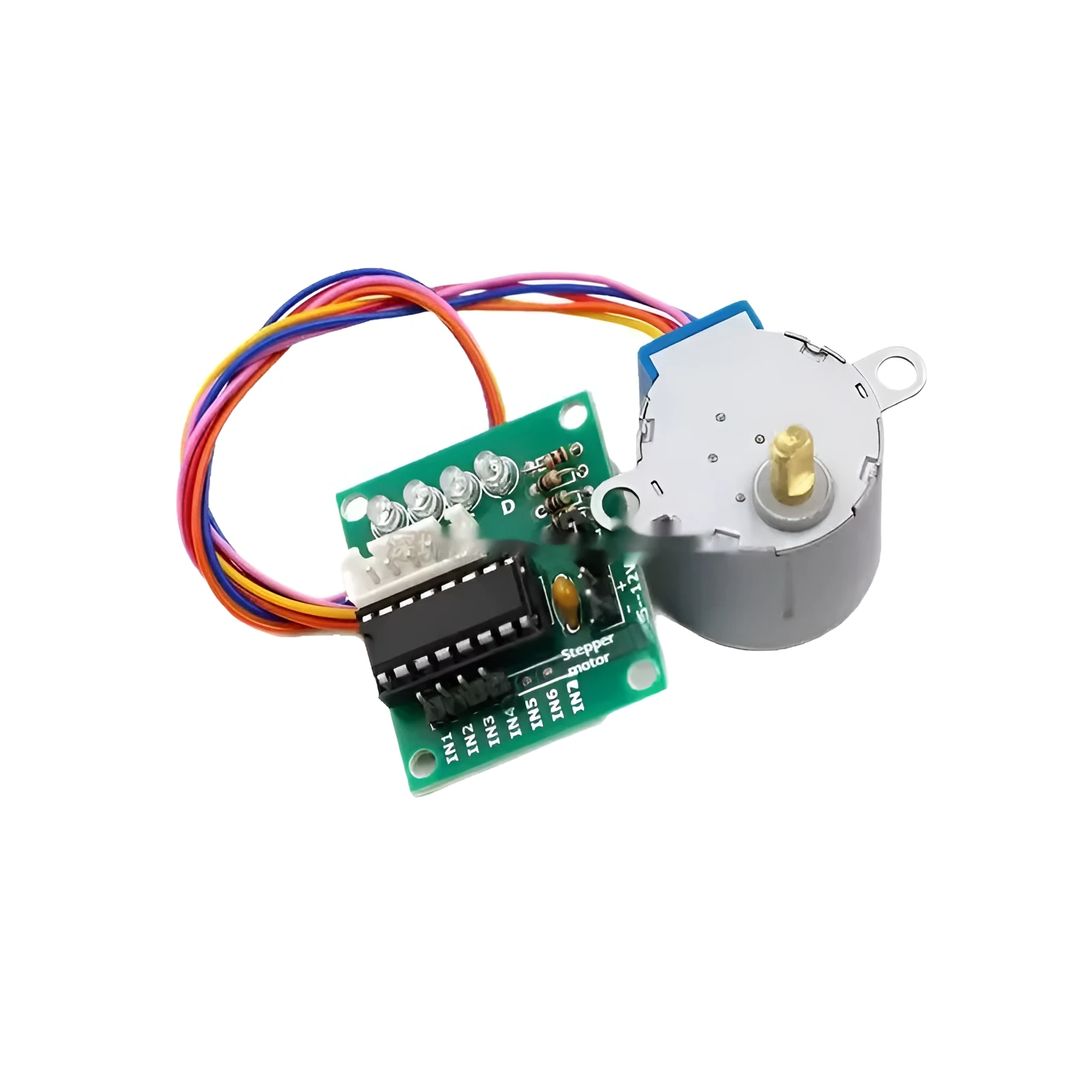

28BYJ4 Stepper Motor and ULN2003 Driver Board Module for 5V Control
This stepper motor module combines a 28BYJ4 4-phase 5-wire reduction motor with the ULN2003 driver board, offering a compact solution for precise rotational control in DIY electronics and automation. Designed for 5V operation, it is ideal for hobbyists, educators, and makers working on projects that require accurate positioning, such as robotic arms, camera platforms, or small conveyor systems. The included driver board simplifies wiring and logic control, allowing integration with microcontrollers like Arduino, Raspberry Pi, or similar platforms.
Features and Construction
The module consists of two main components that work together to deliver reliable step control. The motor uses a reduction gearbox to provide higher torque at lower speeds, making it suitable for direct drive applications without external gearing.
Motor Type and Wiring
The 28BYJ4 stepper motor is a 4-phase, 5-wire unipolar motor. Its five wires connect to the ULN2003 driver board, which controls the sequence of coils for precise step rotation. The 5-wire configuration reduces wiring complexity compared to 6-wire motors.
Driver Board Functionality
The ULN2003 driver board contains four Darlington transistor pairs, capable of handling the motor's current requirements. It accepts logic-level inputs (typically from a microcontroller) and provides the necessary drive signals for the motor coils. The board includes indicator LEDs for each phase, helpful for debugging.
Uses and Placement
This module is commonly used in educational kits, small automation projects, and as a teaching tool for understanding stepper motor principles. Its compact size and low voltage make it safe for benchtop use.
DIY and Hobbyist Projects
Typical applications include building small robotic vehicles, automated blinds, mini CNC plotters, or rotating displays. The reduction gearbox allows the motor to hold position with reasonable torque.
Educational Demonstrations
For STEM classrooms, this module demonstrates the principles of step angle, holding torque, and open-loop position control. Students can program step sequences and observe the relationship between input pulses and motor rotation.
Benefits and Buying Value
This all-in-one kit eliminates the need to source a motor and driver separately, saving time and ensuring compatibility. The 5V rating matches common microcontroller power supplies.
Low Voltage and Safety
Operating at 5V, the module is safe for breadboard and desk use without special power supplies. This also makes it easy to power from a USB port or battery pack.
Ease of Integration
With plenty of online libraries and tutorials available for the 28BYJ4 motor and ULN2003 driver, getting started is straightforward. The included driver board has screw terminals for secure wiring.
