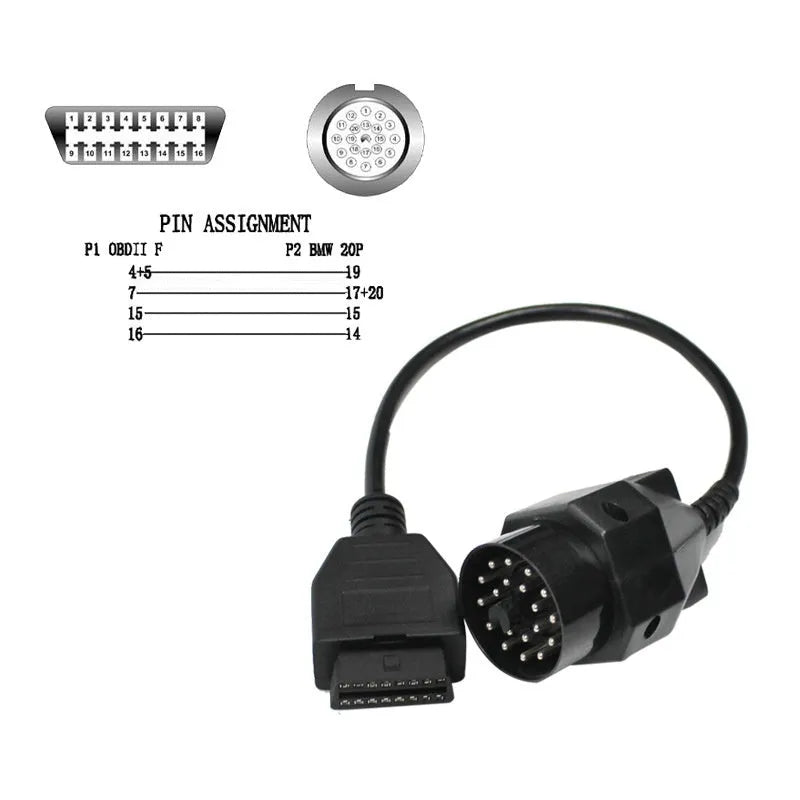

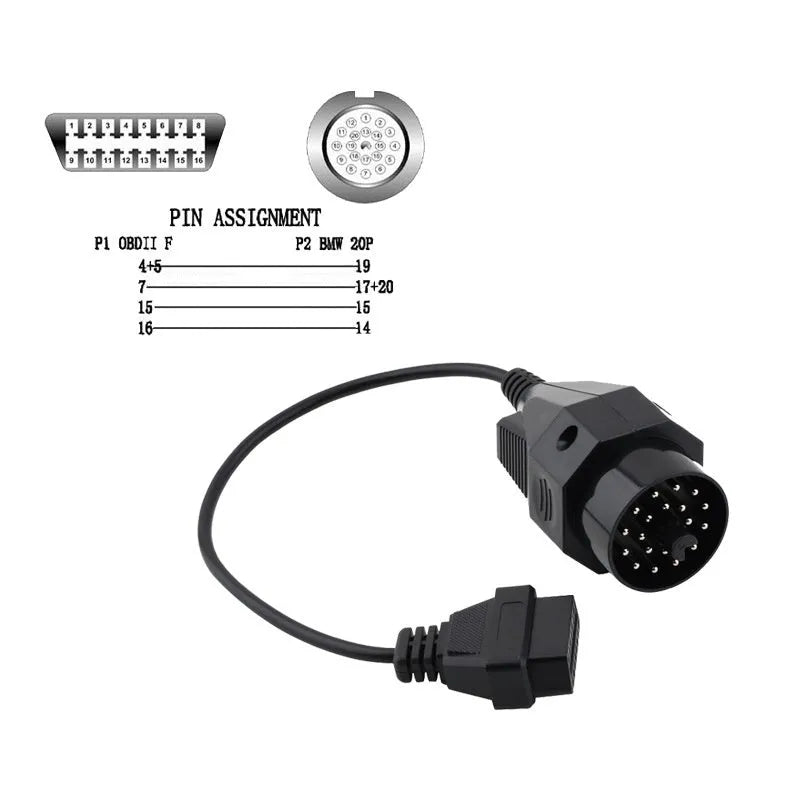

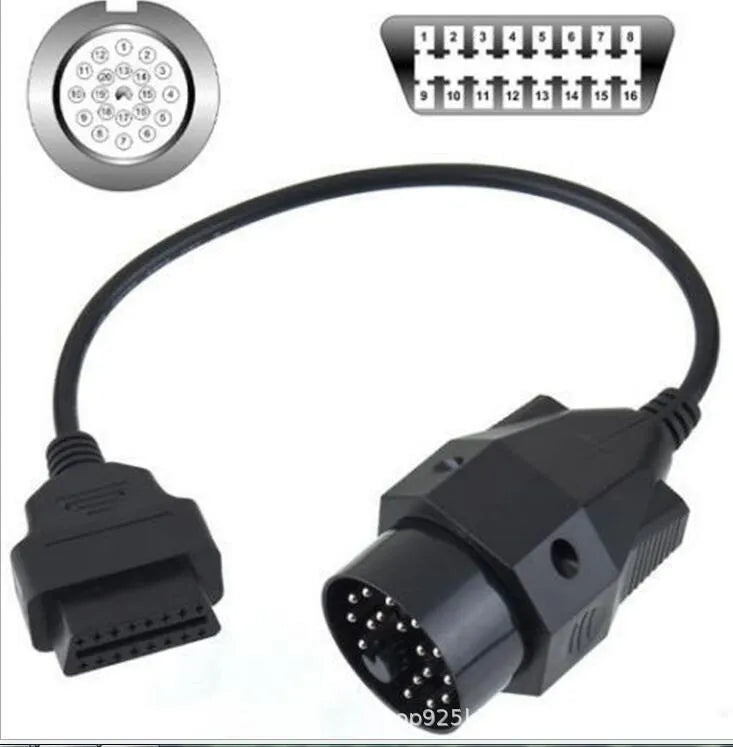

OBD2 BMW 20-Pin to 16-Pin Diagnostic Adapter Cable for Vehicle Scanning
This adapter cable provides a direct and practical solution for BMW owners and technicians who need to use universal OBD2 diagnostic equipment. Many BMW models feature a manufacturer-specific 20-pin diagnostic connector located under the bonnet, which is incompatible with the standard 16-pin OBD2 ports found on most scan tools and code readers. This cable bridges that gap, converting the proprietary BMW interface to the universal standard. It is specified for a 12-volt electrical system and is built to function in the under-bonnet environment, supporting an operating temperature of up to 45°C. By enabling the use of widely available diagnostic tools, it offers a straightforward approach to reading fault codes and accessing vehicle data.
Features and Construction
This cable is a dedicated interface converter designed with a clear purpose: to connect two different automotive diagnostic standards. Its construction is focused on providing reliable electrical contact and physical durability for use in a workshop or home garage setting.
Material and Build

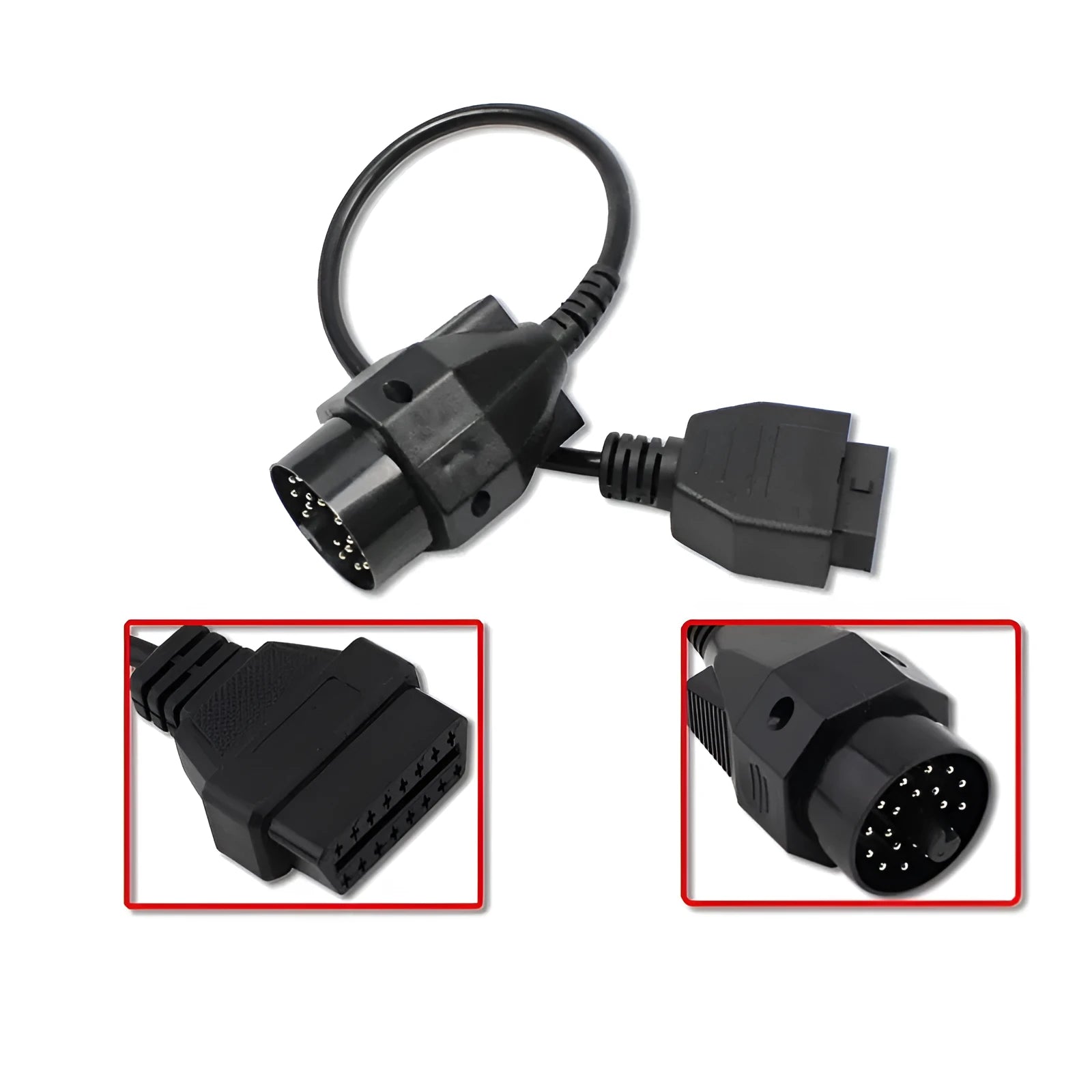

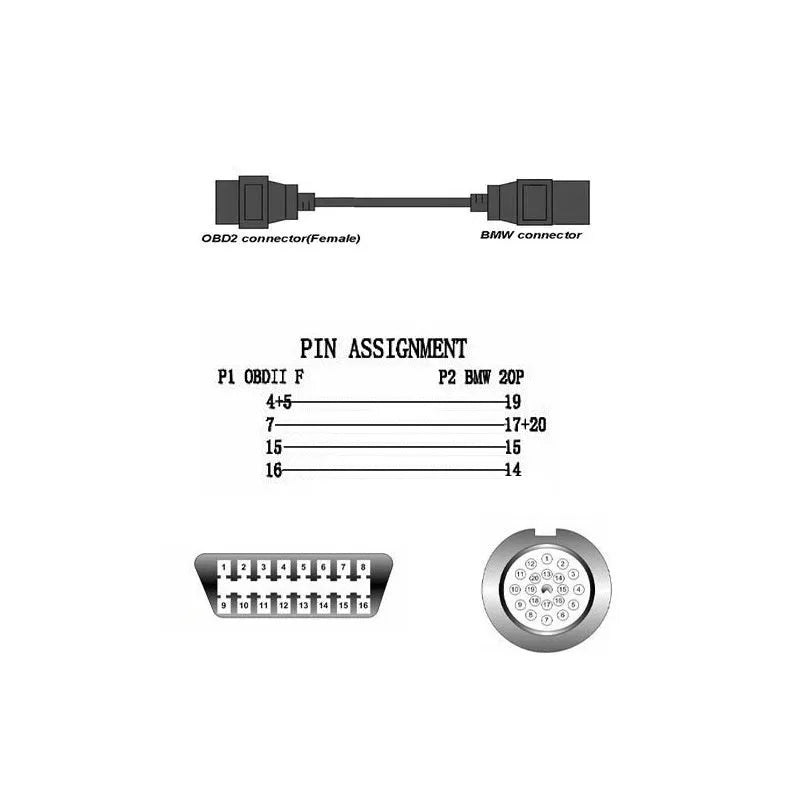

The cable is constructed from connecting cables of an unspecified material, chosen for its suitability in a 12-volt automotive environment. The connectors are moulded to the cable ends, housing the specific pin configurations—a BMW 20-pin on one end and a standard 16-pin OBD2 connector on the other. This design ensures the correct pinout mapping for accurate data transmission between the vehicle's ECU and your diagnostic tool. The product is rated for operation in temperatures up to 45°C, making it suitable for use in typical garage conditions.
Size and Practical Fit
The source information does not specify the cable's length, which influences where you can comfortably place your diagnostic tool while it's connected. The connectors are designed to fit snugly into their respective ports; the 20-pin end mates with the BMW under-bonnet socket, while the 16-pin end interfaces with any compliant OBD2 scanner. When using the adapter, ensure both connections are fully seated to maintain a stable link for scanning procedures.
Uses and Placement
This adapter cable unlocks the functionality of standard diagnostic tools for a specific range of vehicles, serving both professional and DIY user scenarios where BMW-specific factory tools are not available or practical.
Event or Professional Use
For automotive technicians and mechanics, this cable acts as a vital interface tool, allowing a single, standard OBD2 scanner to work on a wider range of vehicles, including BMWs with the 20-pin port. It streamlines the diagnostic process in a workshop, saving time that might otherwise be spent locating specialist equipment. It enables quick code reading, live data monitoring, and system checks for BMW models specified as compatible, supporting efficient troubleshooting and repair workflows.
Everyday Home Use
For the DIY car enthusiast or BMW owner, this cable makes basic vehicle diagnostics accessible. If your check engine light illuminates, you can use this adapter with an affordable generic code reader to retrieve fault codes from your BMW, helping you understand potential issues before visiting a garage. It can also be used with more advanced Bluetooth OBD2 adapters and smartphone apps for monitoring real-time engine data and performance metrics during drives.
Benefits and Buying Value
The core value of this product lies in its function as a compatibility enabler, turning a specialist requirement into a standardised task. It emphasises practicality, reuse, and access over complex features.
Reuse and Low Maintenance
This is a durable, single-purpose tool designed for repeated use. There are no consumable parts or complex maintenance routines; simply store the cable appropriately when not in use to protect the connectors from dirt and damage. Its value is realised every time it enables a connection between your BMW and a diagnostic tool, potentially over many years of ownership and across different scanning devices.
Why Choose This Product
Choose this adapter cable for its specified compatibility with BMW vehicles and its straightforward design. It provides a direct solution to a known compatibility problem—connecting standard tools to a proprietary BMW port. The key advantage is enabling the use of the diagnostic equipment you may already own or can readily obtain, avoiding the need for expensive BMW-specific scanning hardware for basic code reading and data access tasks.
