Compact Lithium Battery Charging and Protection Integrated Board for DIY Electronics

Managing the power for a single-cell lithium battery typically requires two separate circuits: one for controlled charging and another for protection against over-discharge and short circuits. This integrated board combines both functions into a single, ready-to-use module measuring just 2.6cm by 1.7cm. It simplifies project design and assembly for electronics hobbyists, makers, and anyone involved in repairing or building small portable devices. By providing a regulated 5V input to a 4.2V charge cut-off and incorporating key safety protections, it offers a practical, space-saving solution for powering a wide range of applications.

Features and Construction

This board is designed as a complete power management unit for 3.7V lithium-ion or lithium-polymer cells. Its integrated design eliminates the need to source and wire discrete charging ICs and protection circuits separately.

Material and Build

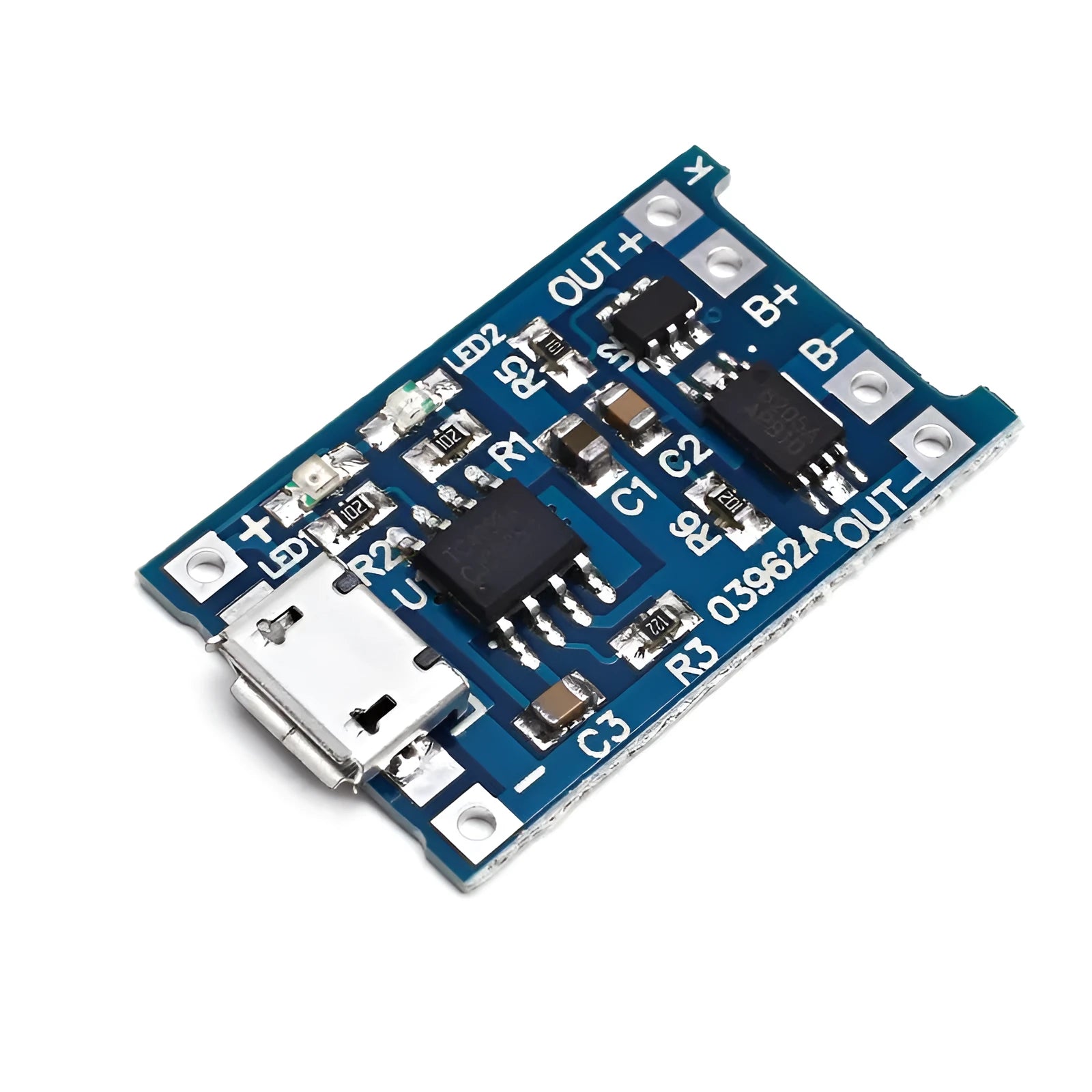

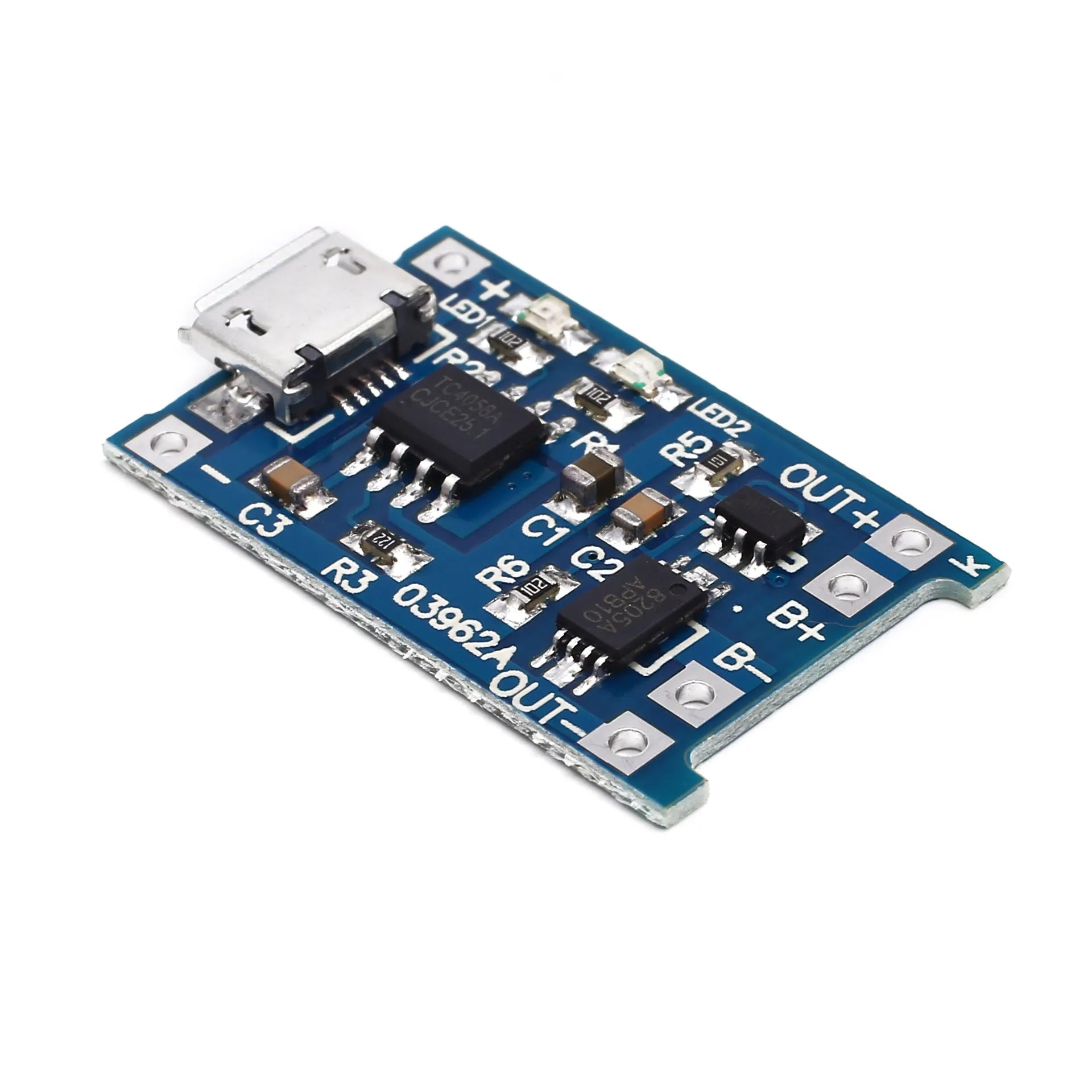

The board is constructed on a standard fibreglass PCB, which provides a stable and non-conductive base. Electronic components such as the charging management IC, protection IC, resistors, capacitors, and LEDs are surface-mounted. This SMT construction contributes to the board's compact 2.6cm x 1.7cm footprint and allows for automated assembly, which can help ensure consistent performance. The components are selected to perform the specific functions of voltage regulation and current monitoring required for safe lithium battery operation.

Size and Practical Fit

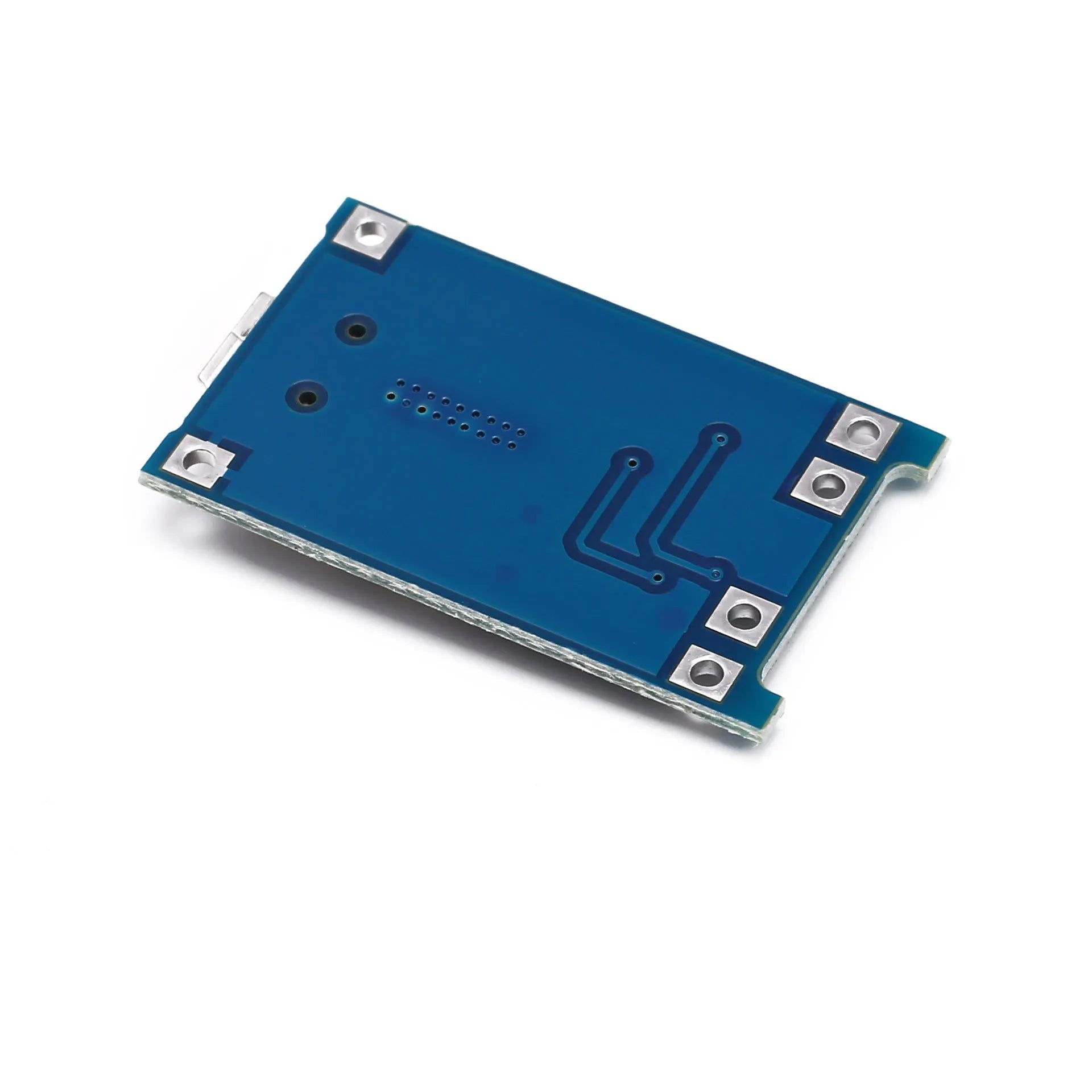

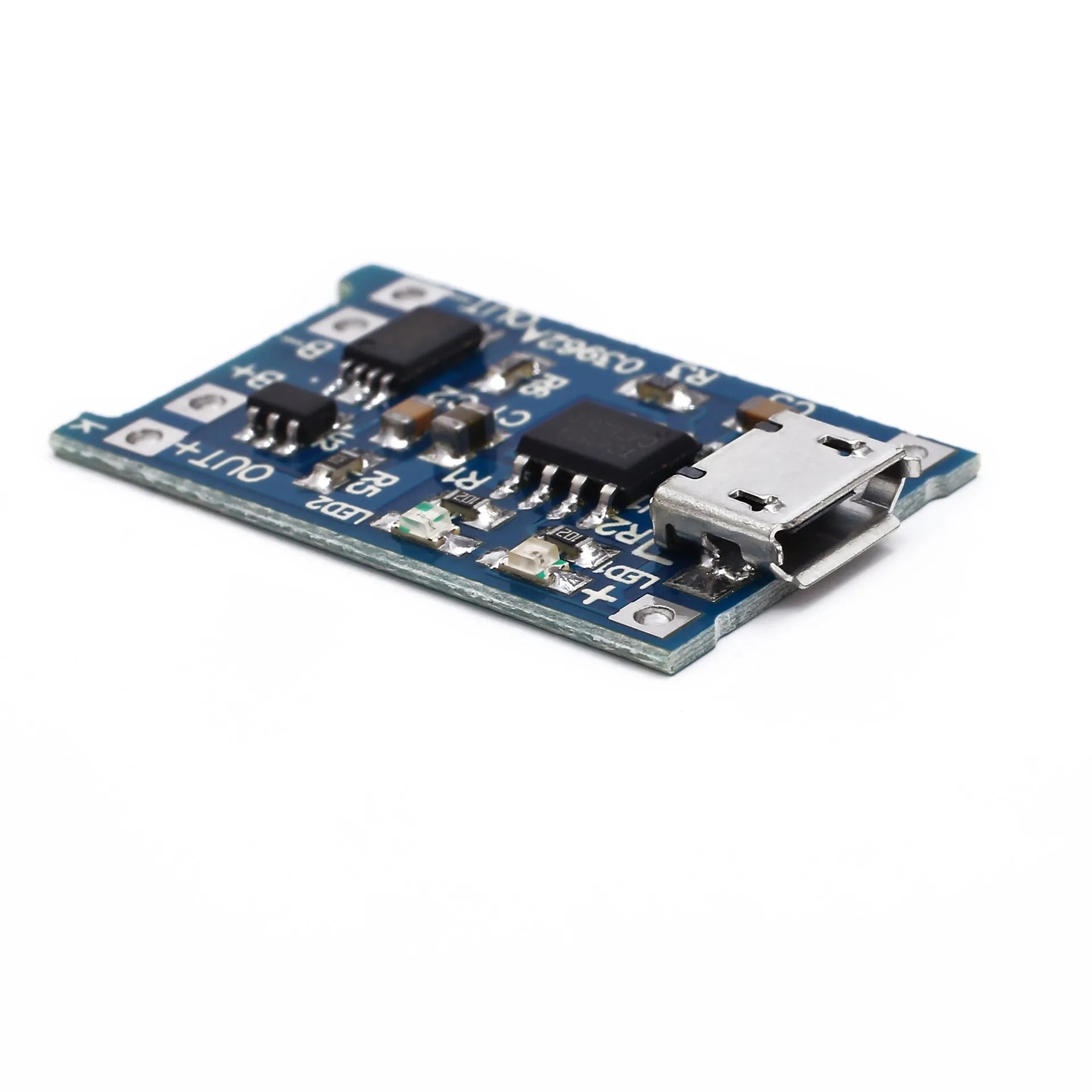

With dimensions of 2.6 centimetres in length and 1.7 centimetres in width, this board is designed for integration into projects where space is at a premium. Its small size makes it suitable for embedding inside handheld gadgets, DIY robotics, custom battery packs, or portable sensor units. The compact form factor means it can often be fitted into existing enclosures or new designs without requiring significant layout changes, offering greater flexibility than using two separate modules.

Uses and Placement

The integrated charging and protection functions make this board versatile for numerous scenarios where reliable battery power is needed. Its design caters to both one-off projects and small-batch prototyping.

Event or Professional Use

For professional prototyping, electronics workshops, or educational settings, this board serves as a reliable, pre-built module that reduces design time and potential wiring errors. It can be used to quickly add safe battery power to demonstration models, test rigs, or temporary installations at events. The inclusion of overcurrent protection (3A) provides a safety margin when powering motors, lights, or other components that may experience current surges, which is valuable in a workshop or live event environment.

Everyday Home Use

DIY enthusiasts and makers can use this board to repair or upgrade a variety of household electronics. Common applications include reviving old cordless gadgets, building custom power banks, creating efficient lighting solutions, or constructing portable speakers. For hobbyists working on drones, RC models, or wearable tech, the board's protection features help prevent battery damage from accidental deep discharge, which can extend the usable life of often-expensive lithium cells.

Benefits and Buying Value

Choosing an integrated board like this offers distinct advantages over assembling separate components, primarily in terms of simplicity, reliability, and space savings.

Reuse and Low Maintenance

Once integrated into a project, this board requires minimal ongoing maintenance. Its solid-state design has no moving parts to wear out. The protection circuits actively work to preserve the connected lithium battery by preventing overcharging and deep discharge, two of the most common causes of premature battery failure. This proactive protection can contribute to the battery's longevity, making the overall system more reliable and reducing the frequency of battery replacements.

Why Choose This Product

This product provides a tested, ready-to-use solution that saves time and reduces complexity. For those not specialised in power electronics, designing a reliable charging and protection circuit from scratch can be challenging. This board delivers that functionality with specified parameters: a 5V input, 1000mA max charge current, and 3A overcurrent protection. Its value lies in its convenience and the inclusion of essential safety features in one compact package, allowing the user to focus on their core project rather than the intricacies of battery management.
