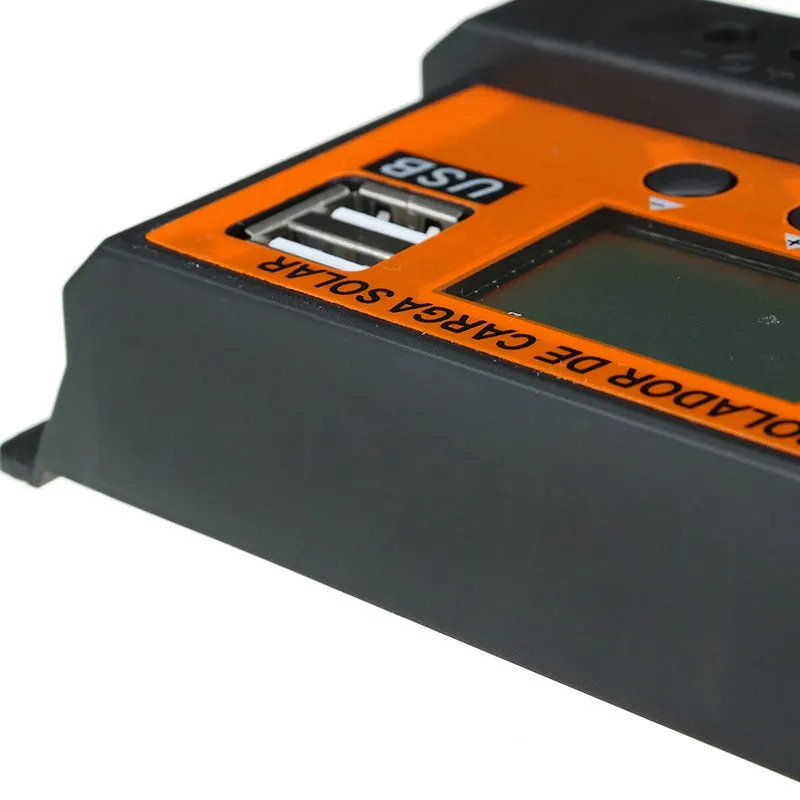

LCD Solar Charge Controller 10A to 100A with Orange Backlit Display and PVC Construction

This LCD solar panel charging controller provides essential regulation for off-grid solar battery systems, protecting batteries from overcharging and deep discharge. With options spanning 10A through 100A, it suits a wide variety of small to medium photovoltaic arrays. The orange backlit LCD panel gives clear system status readings even in dim environments, while the compact PVC and glass fibre construction keeps the unit lightweight at just 150g. This controller is a practical, no-frills solution for basic solar charge management.

Features and Construction

The controller is engineered for straightforward installation and reliable daily operation. Its materials and dimensions make it easy to integrate into existing systems or standalone setups.

Material and Build

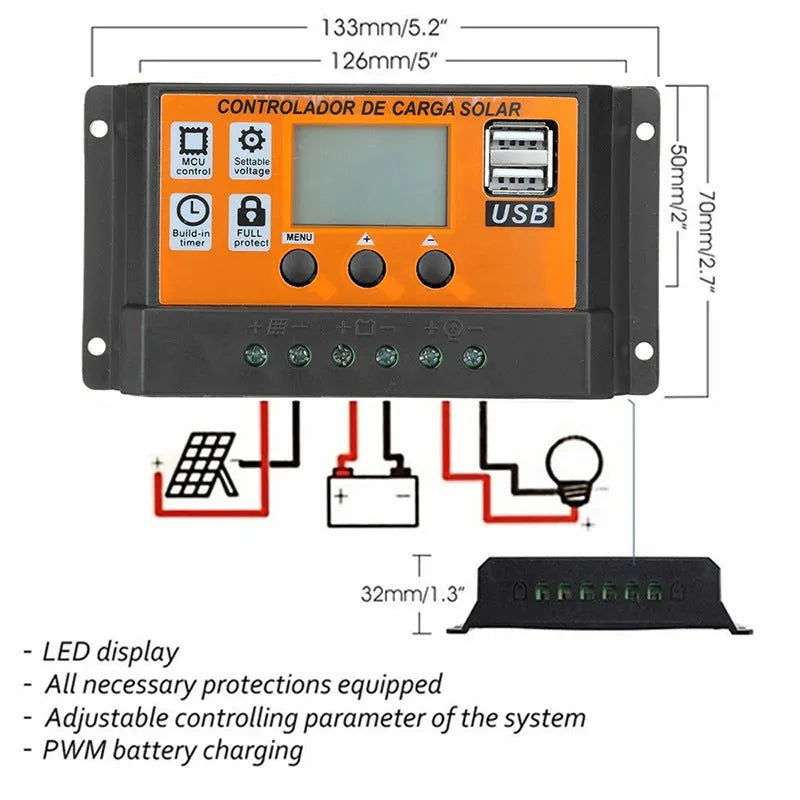

The outer casing is made from PVC, a standard insulator in low-cost electronic enclosures. Glass fibre components within the circuit board provide electrical insulation and mechanical rigidity. The unit measures 133 by 57 by 35 millimetres, offering a compact footprint for panel-mount or shelf installation.

Size and Practical Fit

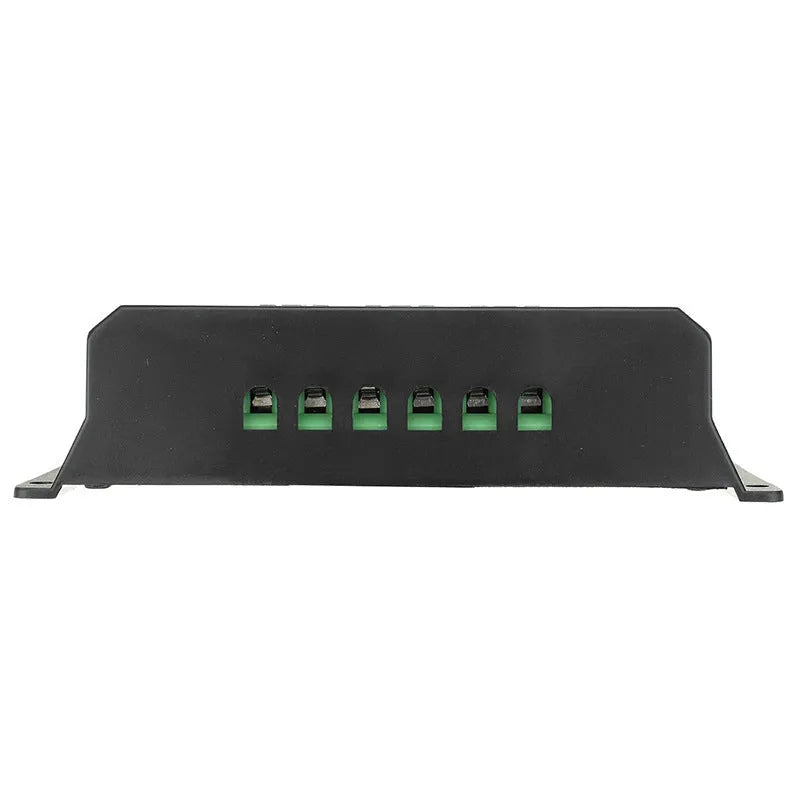

Weighing only 150 grams, this controller is lightweight and easy to handle during wiring. Its dimensions allow it to be mounted in tight spaces within battery boxes or control panels. The small form factor does not compromise the terminal block layout, which accepts standard solar wiring sizes.

Uses and Placement

This charge controller meets the needs of a range of solar charging scenarios, from small portable kits to more permanent off-grid installations.

Off-Grid Solar Battery Charging

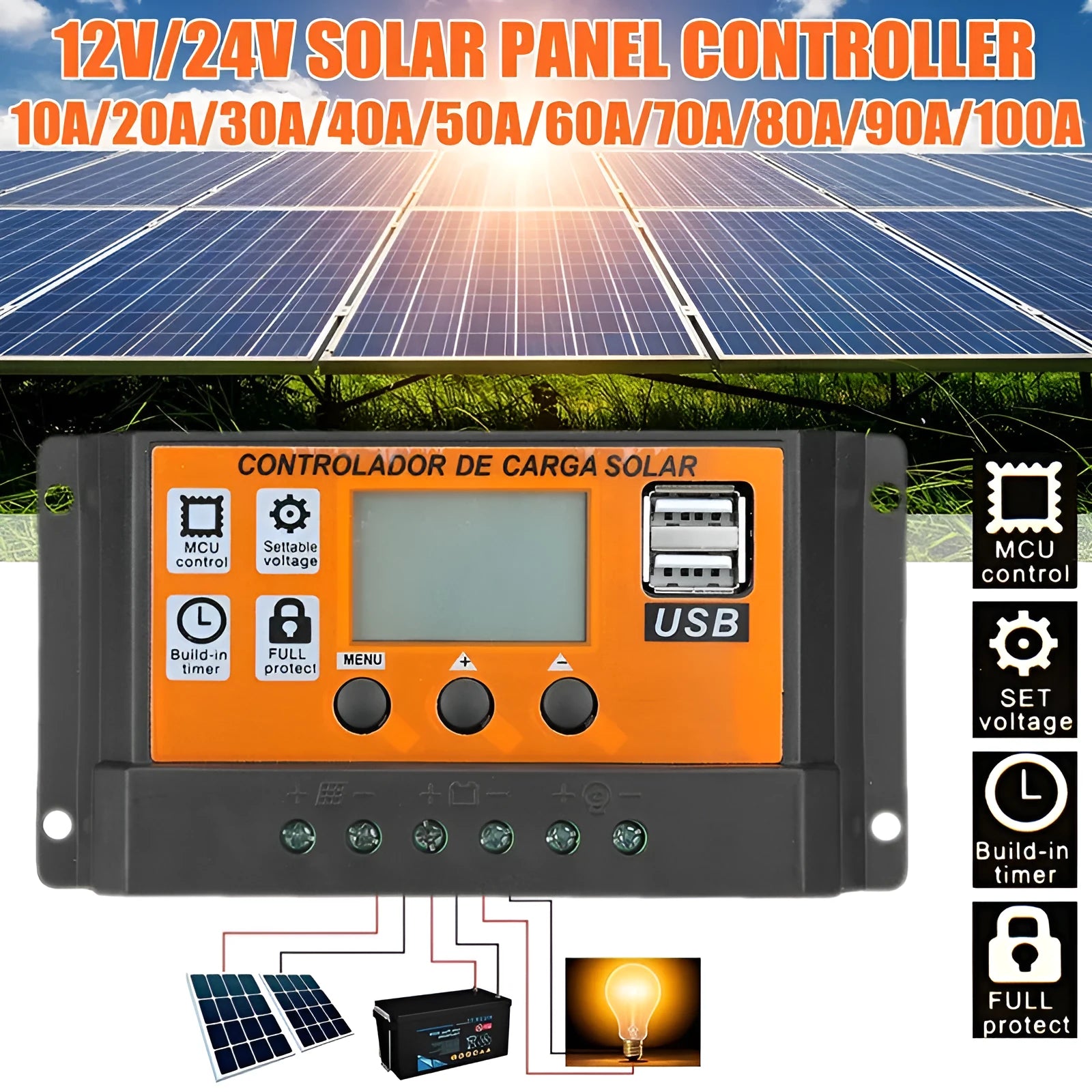

The primary use is regulating voltage from solar panels to 12V or 24V lead-acid or similar batteries, preventing overcharge at high current levels and cut-off when battery voltage drops too low. Each model from 10A to 100A matches a maximum panel current rating, allowing the user to size the controller to their array output.

System Monitoring

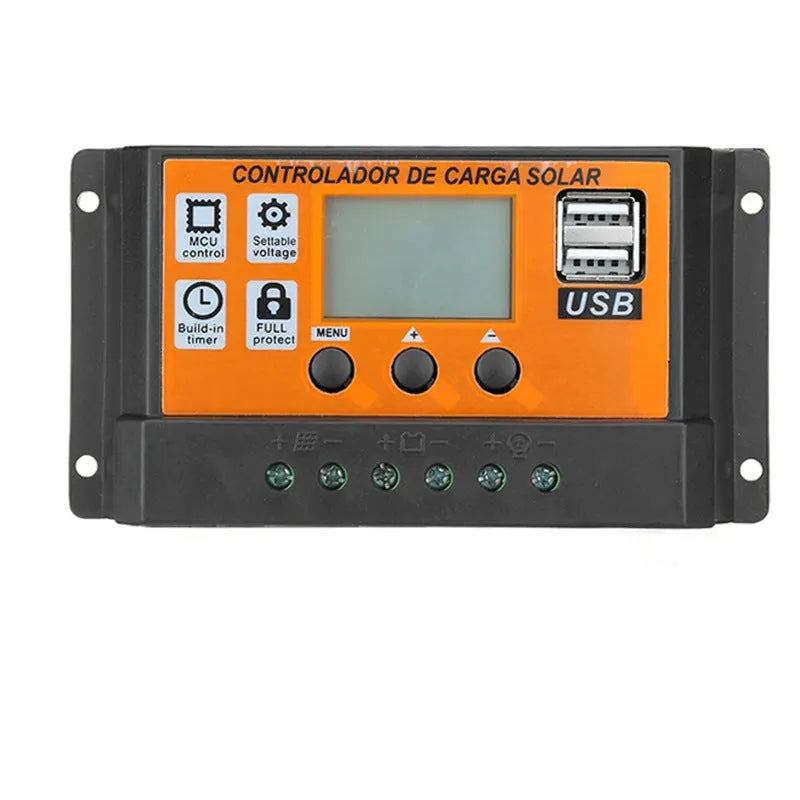

The orange backlit LCD provides real-time data on battery voltage, charging status, and load condition. This makes it easy to verify system operation at a glance, without needing a separate voltmeter. The backlight improves visibility in shaded or indoor mounting spots.

Benefits and Buying Value

Choosing the right current rating and understanding the construction helps users extend battery life and avoid equipment damage.

Reuse and Low Maintenance

Once installed with correct polarity, the controller operates passively with no moving parts. The PVC casing resists minor splashes but is not waterproof, so mounting in a dry location minimises degradation. The glass fibre components do not corrode, supporting long electrical service life.

Why Choose This Product

The main advantage is the flexible current range: you can select 10A for a small portable panel or 100A for a larger stationary array, while keeping the same compact form factor and LCD readout. This avoids needing to buy a different physical size as your system grows.
