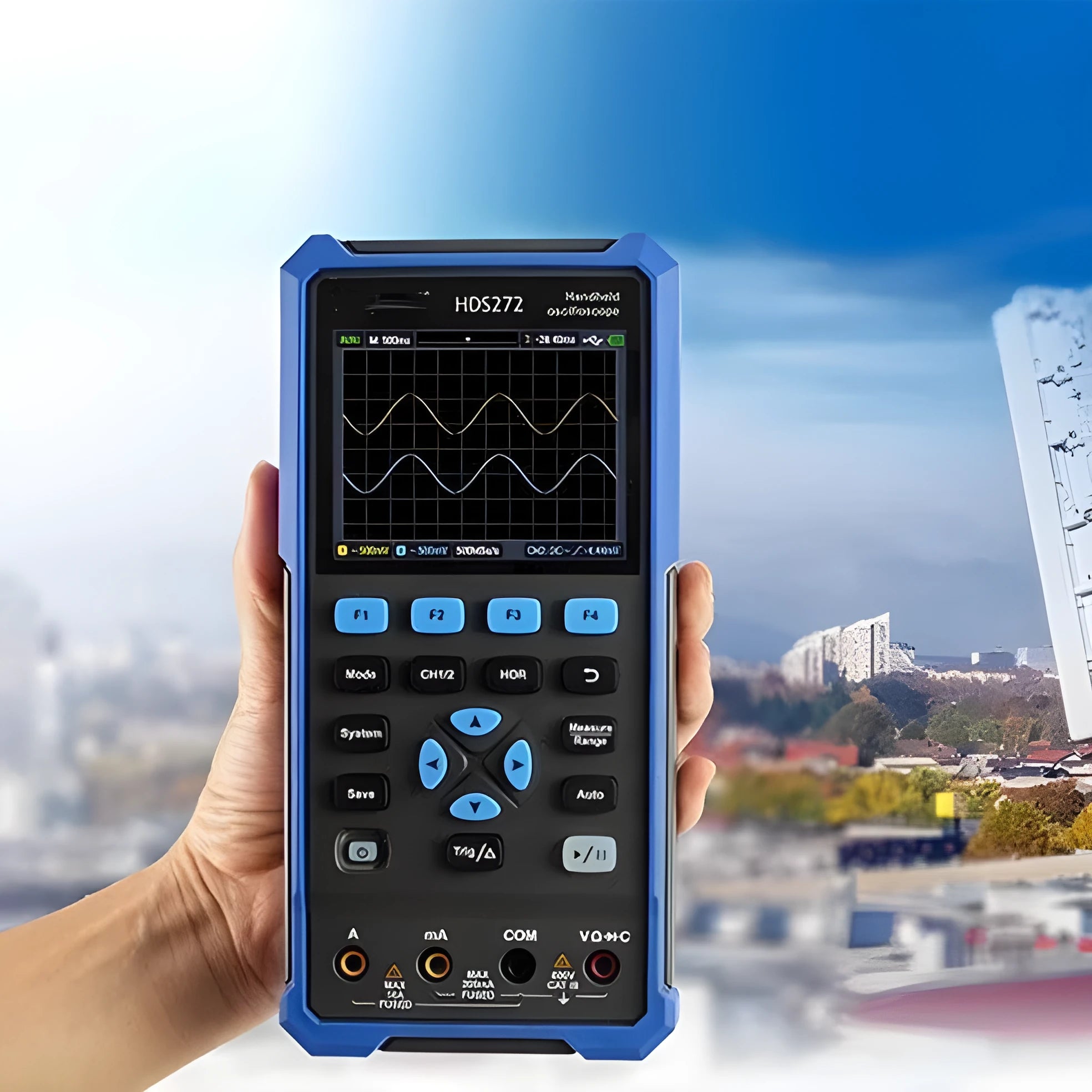

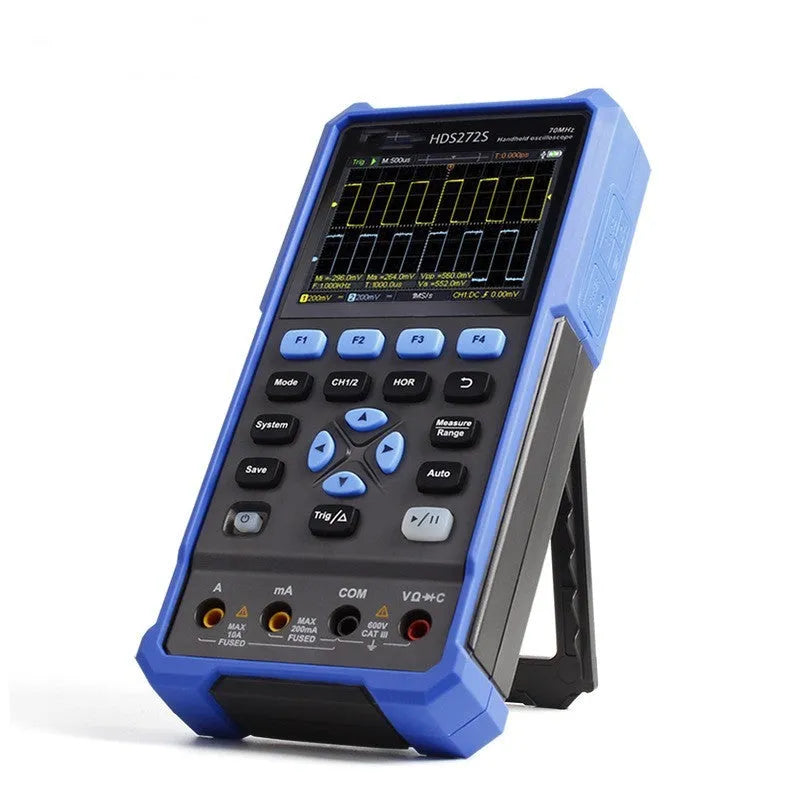

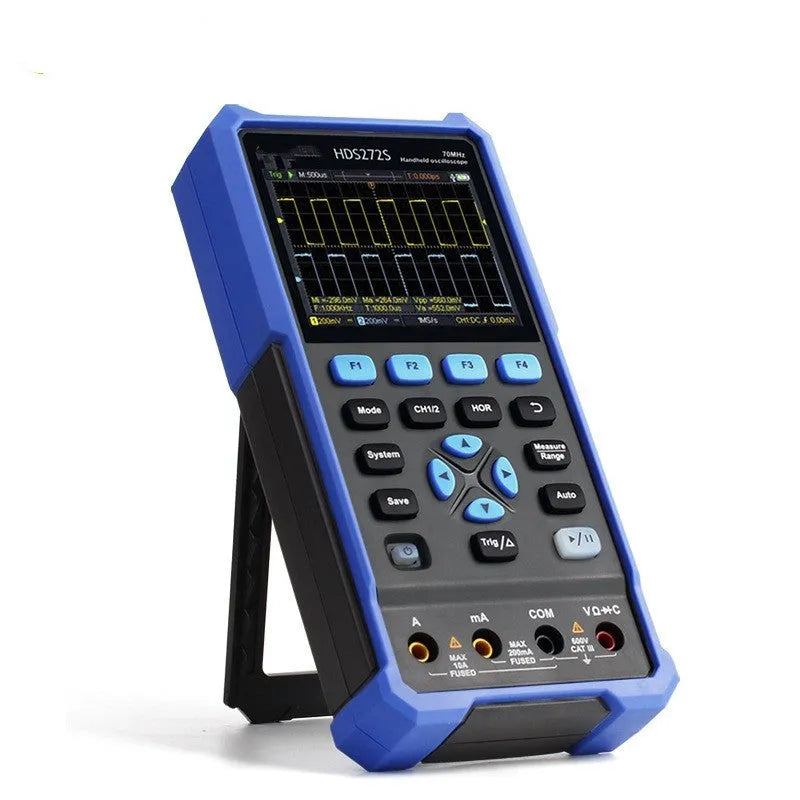

Owon HDS272 Handheld Digital Oscilloscope: 70MHz Bandwidth for Portable Automotive and Electronics Testing

This handheld digital oscilloscope offers a practical alternative to traditional benchtop instruments for technicians who need to perform electrical measurements in the field. With its 40-70 MHz bandwidth range, it captures signals common in automotive systems, including sensor outputs, CAN bus communications, and ignition waveforms. The compact 198 x 38 x 96 mm design fits easily into a toolbox or service vehicle, while the included portable bag provides protection during transport between job sites. For automotive repair specialists, electronics engineers, and field service technicians, this instrument provides the core functionality needed for troubleshooting without requiring a dedicated workshop setup.

Features and Construction

The Owon HDS272 combines measurement capabilities typically found in larger instruments with the portability needed for mobile diagnostics. Its construction prioritizes functionality in constrained environments where access to power outlets or workspace may be limited. The complete accessory kit ensures technicians can connect to various test points immediately, reducing setup time during critical troubleshooting scenarios.

Material and Build

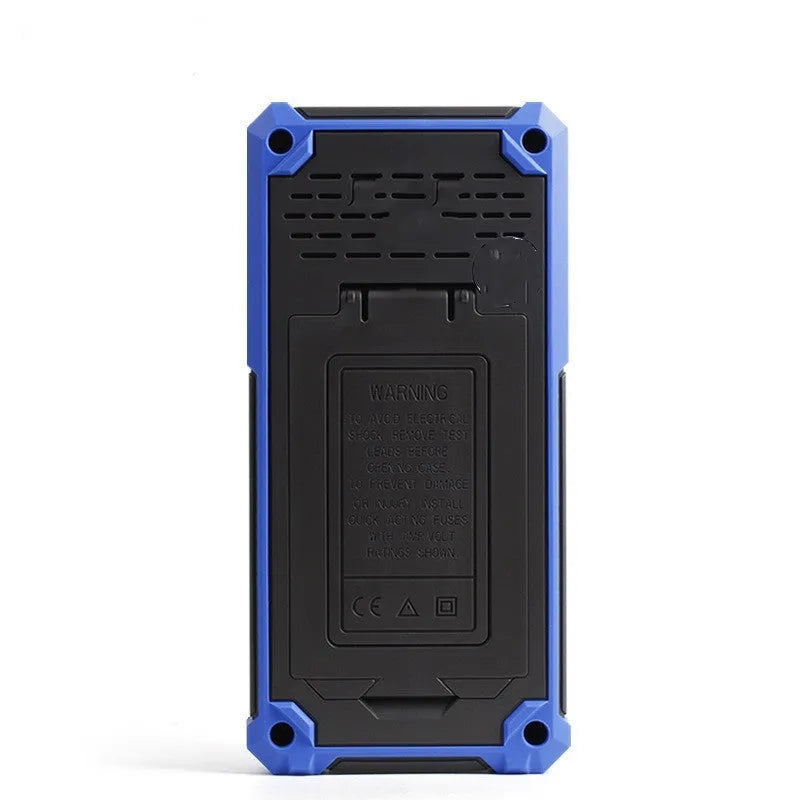

The oscilloscope's housing utilizes plastic materials that contribute to its handheld form factor by keeping overall weight manageable during extended use. This material choice supports the instrument's primary function as a portable device that can be comfortably held while probing test points in awkward positions. Metal components are incorporated at critical connection points, including probe contacts and BNC connectors, to maintain signal integrity across the instrument's specified bandwidth range. The construction focuses on practical durability for professional environments rather than cosmetic appearance.

Size and Practical Fit

With dimensions of 198 mm in length, 96 mm in height, and 38 mm in depth, this oscilloscope occupies minimal space in a tool bag or service vehicle compartment. The proportions allow it to be operated with one hand in many situations, leaving the other hand free to manipulate probes or test leads. The 38 mm depth measurement indicates a slim profile that won't obstruct vision or access when working in confined engine compartments or behind equipment panels. These physical characteristics make it suitable for environments where benchtop oscilloscopes would be impractical due to space constraints.

Uses and Placement

This instrument serves multiple roles in professional and educational settings where electrical waveform analysis is required outside traditional laboratory environments. Its measurement specifications target common signals found in automotive, industrial control, and consumer electronics applications. The included accessories expand its applicability across different testing scenarios without requiring additional purchases.

Event or Professional Use

In automotive repair scenarios, the 40-70 MHz bandwidth adequately captures signals from engine sensors, ABS modules, and onboard communication networks. The 10000 waveforms per second capture rate helps identify intermittent issues that might not appear during static testing, such as glitches in crank position sensor signals or sporadic communication errors. Service technicians can use the instrument during road tests by powering it from a vehicle's USB port or internal battery, then reviewing captured waveforms after returning to the workshop. The multimeter pen included in the kit adds basic voltage and continuity testing capability alongside waveform analysis.

Everyday Home Use

For electronics hobbyists and makers, this oscilloscope provides an accessible entry point for circuit debugging and project development. The complete accessory kit means beginners don't need to research and purchase additional probes or connectors to start taking measurements. The USB connectivity allows for waveform capture and analysis on a computer, enabling documentation of circuit behavior over time. While primarily designed for professional applications, the straightforward included manual and correction tools make it approachable for educational purposes in home workshops or maker spaces.

Benefits and Buying Value

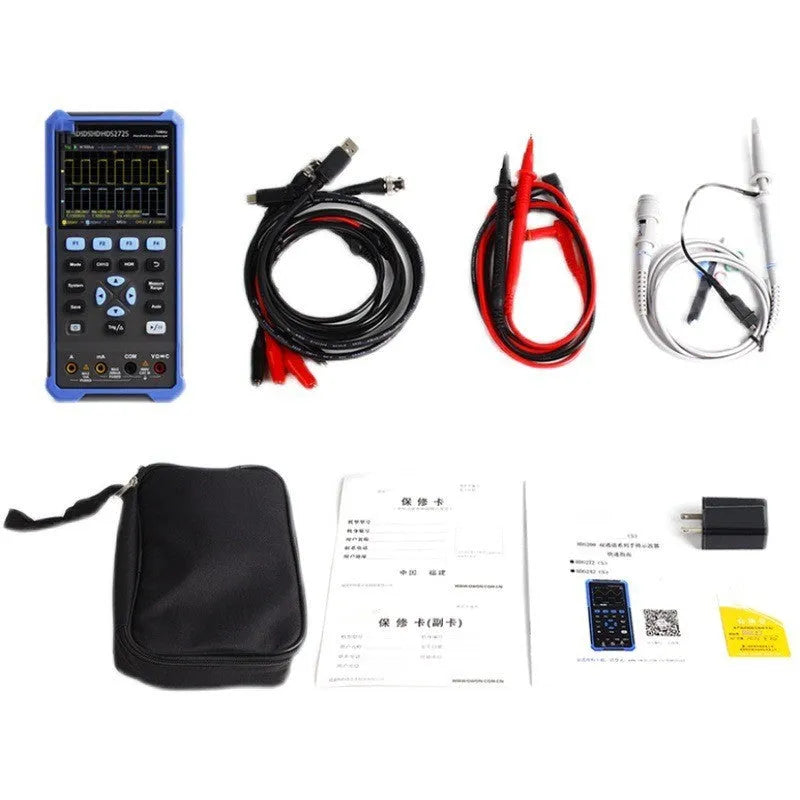

The value of this handheld oscilloscope lies in its balance of measurement capability and portability, supported by a comprehensive set of included accessories. Unlike many electronic test instruments that require separate purchases for basic functionality, this kit provides everything needed for common measurement scenarios immediately. This reduces both initial cost and setup complexity for users who need to start testing quickly.

Reuse and Low Maintenance

The included portable bag protects the instrument during transport between job sites, helping maintain measurement accuracy by preventing physical damage to sensitive components. The correction pen allows users to recalibrate probe compensation when necessary, extending the useful life of the measurement system without requiring factory service. Standard BNC connectors and replaceable probe tips mean that consumable components can be sourced separately if needed, rather than requiring complete instrument replacement. These design considerations support long-term use in demanding professional environments.

Why Choose This Product

This oscilloscope addresses the specific need for waveform analysis in locations where benchtop instruments cannot be practically used. The 40-70 MHz bandwidth covers the majority of signals encountered in automotive and general electronics repair, while the 250MSa/s sampling rate provides sufficient detail for meaningful diagnostics. The complete accessory kit eliminates the hidden costs and research time often associated with configuring a measurement system, providing immediate functionality upon unboxing. For technicians who require electrical testing capability across multiple locations rather than at a fixed workstation, this instrument offers a practical solution that balances performance with portability.
