Miniature DC-DC Buck Converter Module Steps Down 12-24V Input to Stable 5V 3A Output

This compact DC-DC step down power supply module provides an efficient voltage conversion solution for electronic projects requiring stable 5V power from higher voltage sources. Measuring just 25x21mm, the module accepts 12-24V DC input and delivers regulated 5V output with up to 3A continuous current capacity. With 92% conversion efficiency and comprehensive protection features, it serves as a reliable power interface for Arduino boards, Raspberry Pi projects, LED lighting systems, and various low-voltage electronic devices where precise voltage regulation matters.

Technical Specifications and Performance

The module maintains voltage regulation within ±0.5% and load regulation of ±1% across varying input conditions. It achieves 92% conversion efficiency while drawing only 0.85mA quiescent current during standby operation.

Electrical Characteristics

Full load operation produces a 40℃ temperature rise above ambient conditions. The dynamic response speed of 200μS ensures rapid recovery from load changes. Output short-circuit protection activates automatically, though prolonged short-circuit conditions should be avoided to maintain component integrity. An input reverse connection protection diode guards against accidental polarity reversal during installation.

Physical Construction

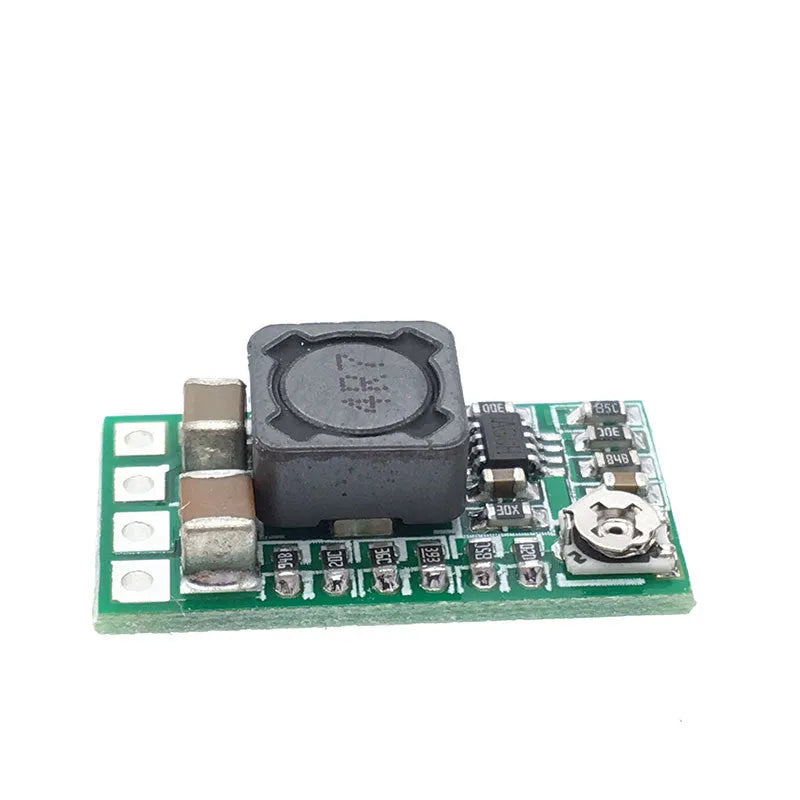

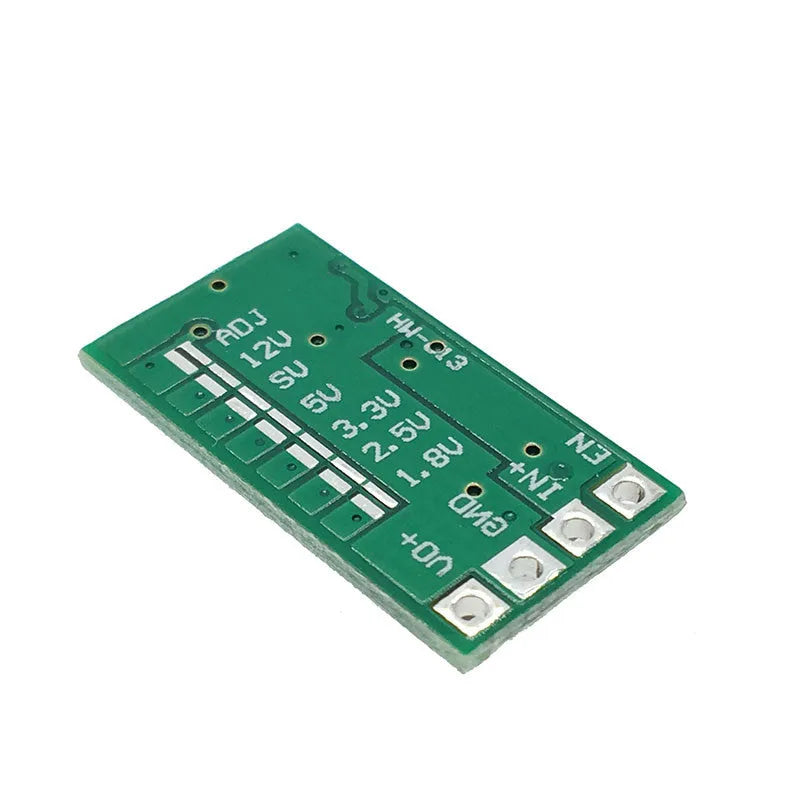

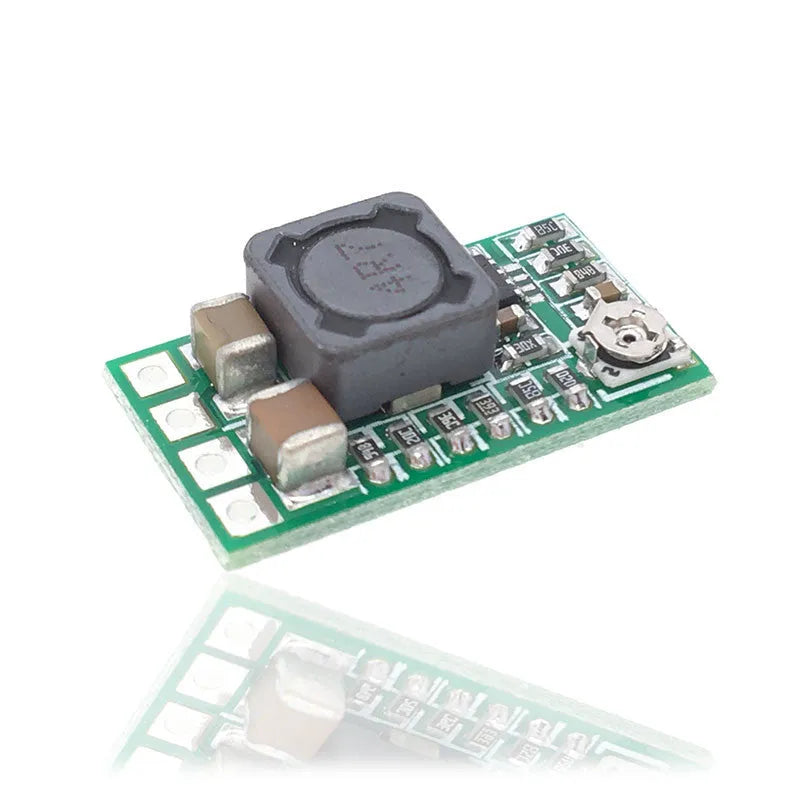

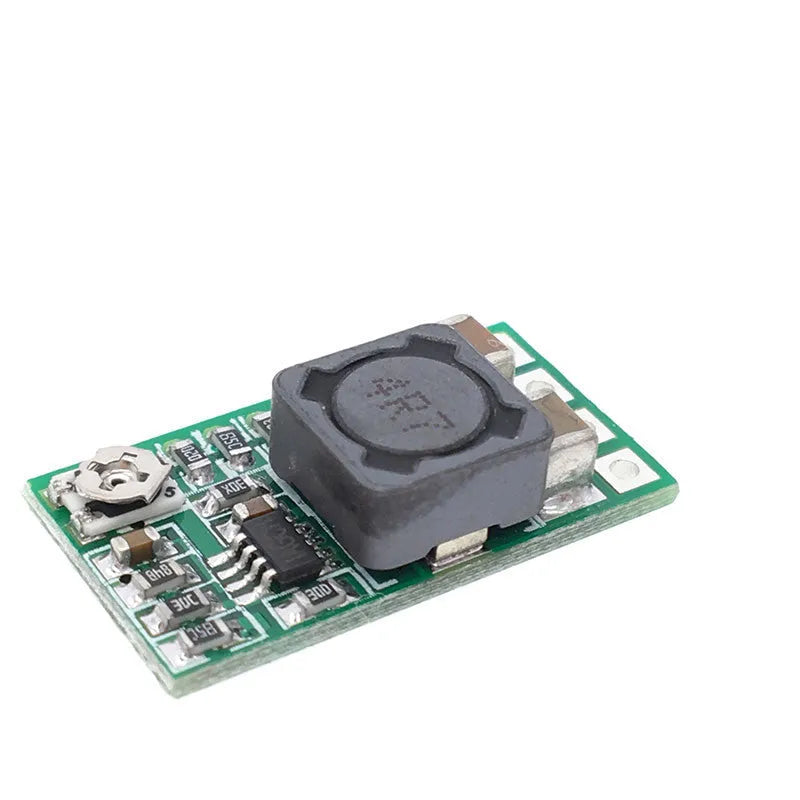

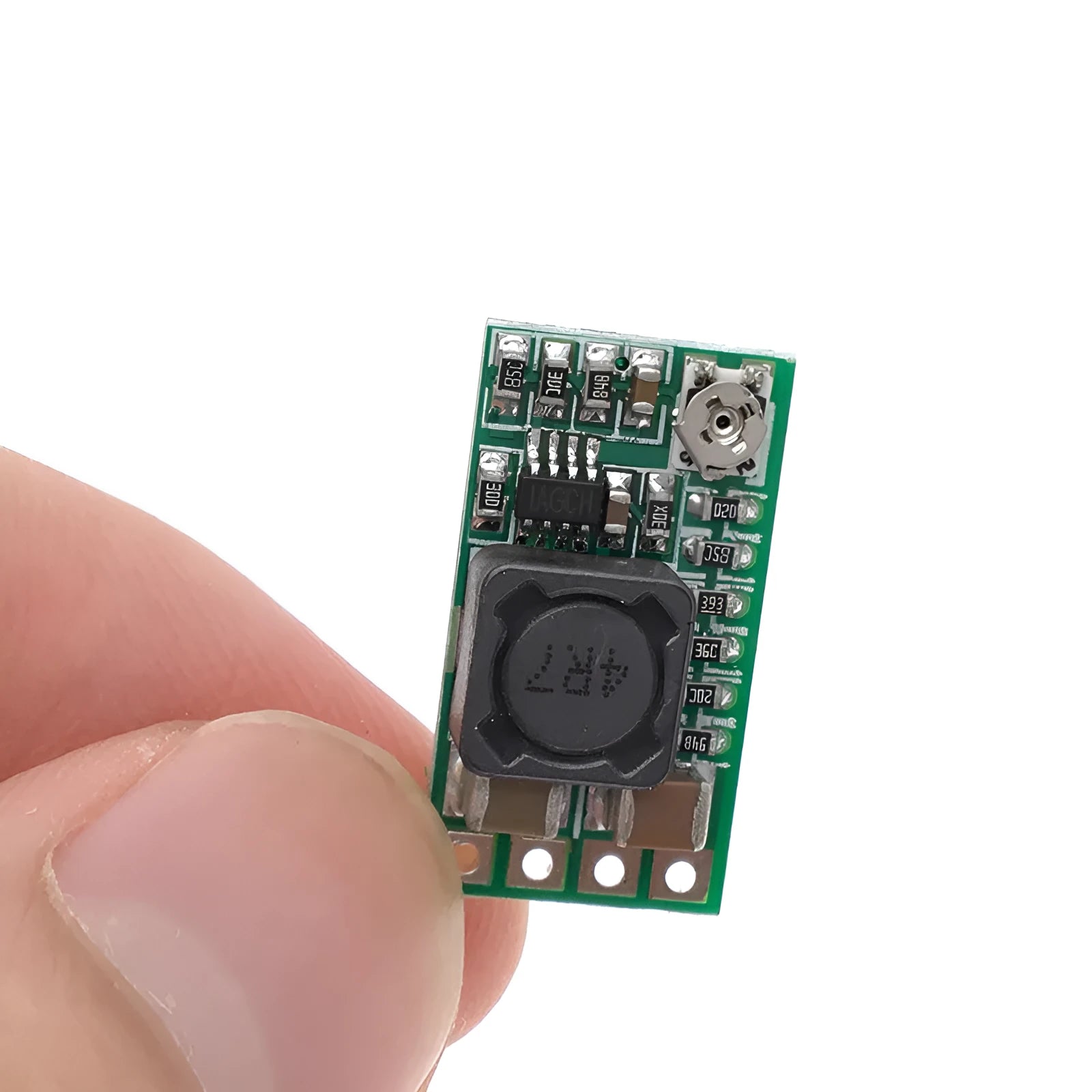

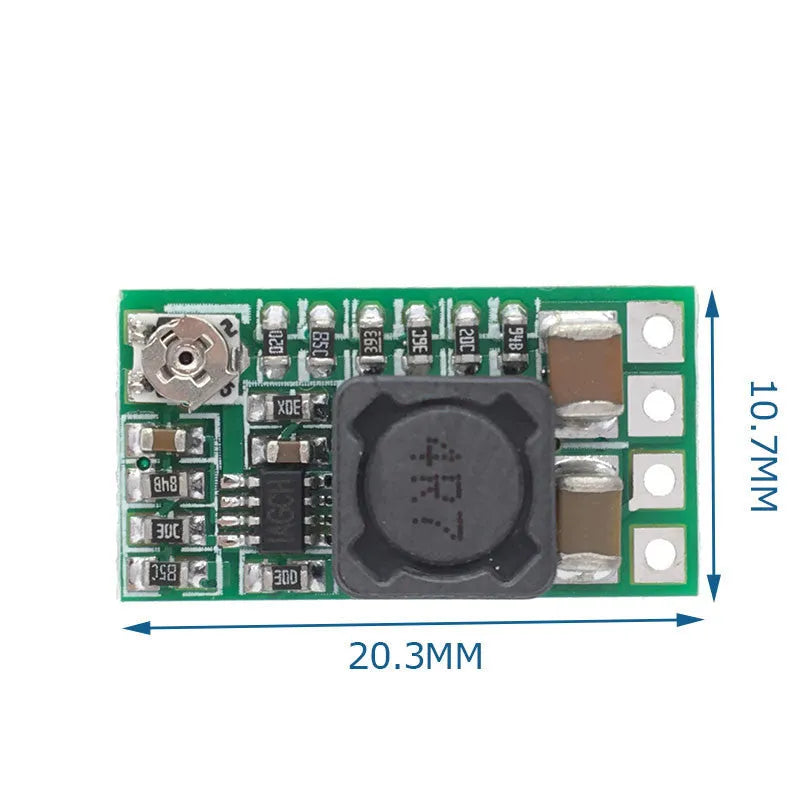

The module features a 25x21mm FR4 PCB with green solder mask finish, exposing all components for inspection and integration. Surface mount technology enables the compact form factor while providing reliable connections. Terminal pads accommodate standard wire gauges for straightforward integration into existing projects.

Operating Parameters

Input voltage range spans 12-24V DC, while output remains fixed at 5V with 3A maximum continuous current. The module operates without forced air cooling but benefits from adequate ventilation during continuous high-current applications.

Application Scenarios and Integration

This voltage converter finds application across numerous electronic projects where stable 5V power is required from automotive, industrial, or battery power sources.

Microcontroller Power Solutions

Ideal for powering Arduino, Raspberry Pi, and other microcontroller boards from 12V vehicle electrical systems or 24V industrial power supplies. The stable output prevents voltage fluctuations that can reset sensitive digital circuits.

Sensor Network Implementation

Suitable for distributed sensor networks requiring 5V power over longer cable runs where voltage drop would otherwise compromise sensor accuracy. The high conversion efficiency minimises power loss during transmission.

LED Lighting Applications

Provides regulated voltage for LED strips and lighting installations where consistent brightness matters. The 3A capacity supports multiple parallel LED strings without additional power supplies.

Installation Guidelines and Best Practices

Proper installation ensures reliable operation and extends module lifespan while maintaining electrical safety.

Connection Methodology

Use appropriate wire gauge for expected current loads, with 18-22 AWG suitable for most 3A applications. Secure connections with soldering or terminal blocks to prevent intermittent contact. Maintain polarity awareness as the module lacks input reverse polarity protection.

Thermal Management Considerations

For continuous 3A operation, implement passive cooling through PCB spacing or airflow. Monitor temperature during initial operation, particularly in enclosed spaces. The 40℃ full load temperature rise indicates heat dissipation requirements.

System Integration Approaches

Mount securely using PCB standoffs or adhesive backing to prevent vibration damage. Consider input filtering for electrically noisy environments. The compact size allows direct integration into existing enclosures or project boxes.
